| Name: | Plastic tank testing pump |
|---|---|
| Model: | SY16/25/40/60xx |
| Flow: | 13ML |
| Tank capacity: | 5L |
| Remark: | Plastic tank |
| Condition: | New |
| MOQ: | 20 SETS |
| Application: | Pipe line pressure |
| Unit price: | Email Us |
| OEM: | Accept |
| Factory: | Direct |

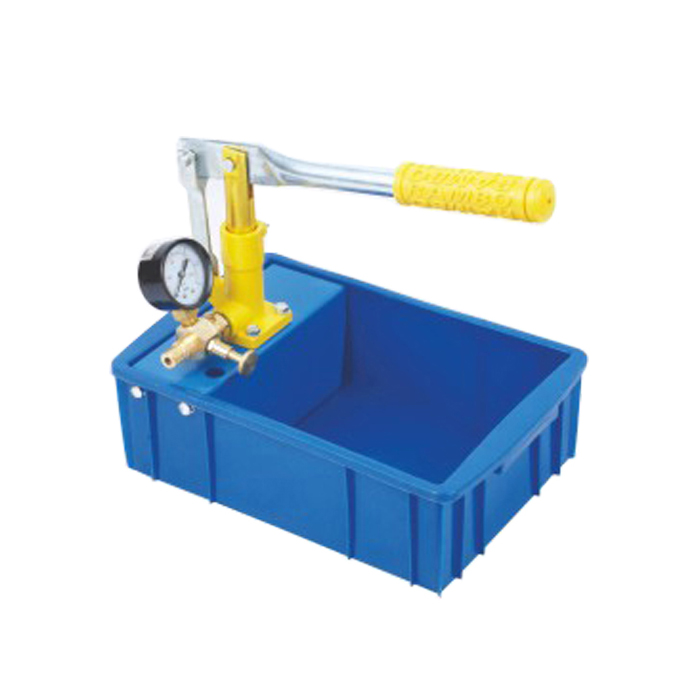

Our Hydrostatic Hand Test Pump is a self-contained, portable, low volume, high pressure pump that is Hand Powered. It is designed to pressurize fluids, in an effort to determine leakage and identify loss in test environment, including: water mains, pressure vessels, irrigation systems, fire sprinklers, fire hoses, sewer lines, steam lines, and boilers.
Hydraulically Tests
•Sprinkler Systems
•Refrigeration Systems
•Oil Installations
•Compressed Air Systems
•Bore Pipe Installations
Specification
| Model | SY-16XX | SY-25XX | SY-40XX | SY-60XX |
| Pressure max | 1.6MPa 250Psi 16Kg/cm2 | 2.5MPa 350Psi 25Kg/cm2 | 4.0MPa 600Psi 40Kg/cm2 | 6.0MPa 900Psi 60Kg/cm2 |
| Flow of stroke | 13c.c. | 13c.c. | 13c.c. | 13c.c. |
| Stroke | 35mm | 35mm | 35mm | 35mm |
| Capacity of water tank | 5L | 5L | 5L | 5L |
| Weight | 4.5kg | 4.6kg | 5kg | 5kg |
| Deas LXHXW (cm) | 32X31X22 | 32X31X22 | 32X31X22 | 32X31X22 |
| Accessories | pressure hose | pressure hose | pressure hose | pressure hose |
| tank | plastic tank | plastic tank | plastic tank | plastic tank |
