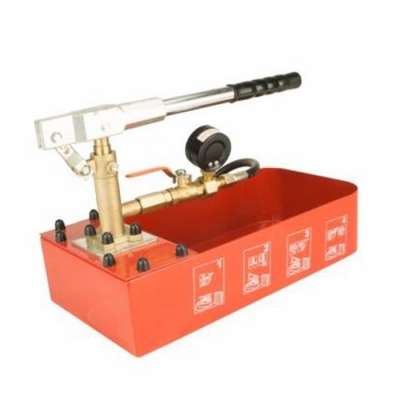

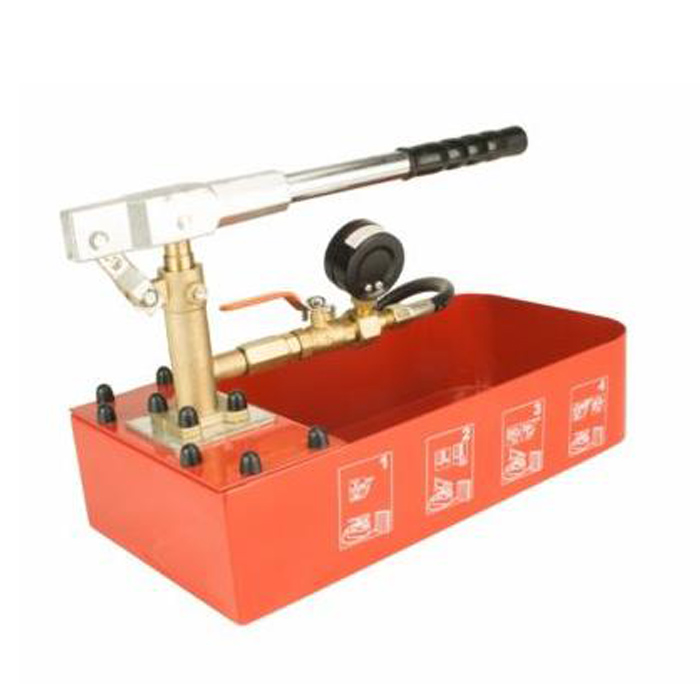

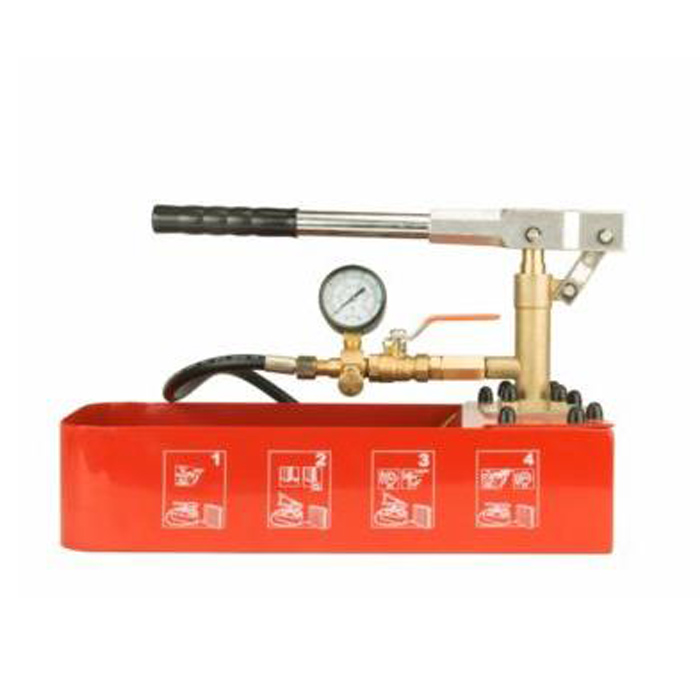

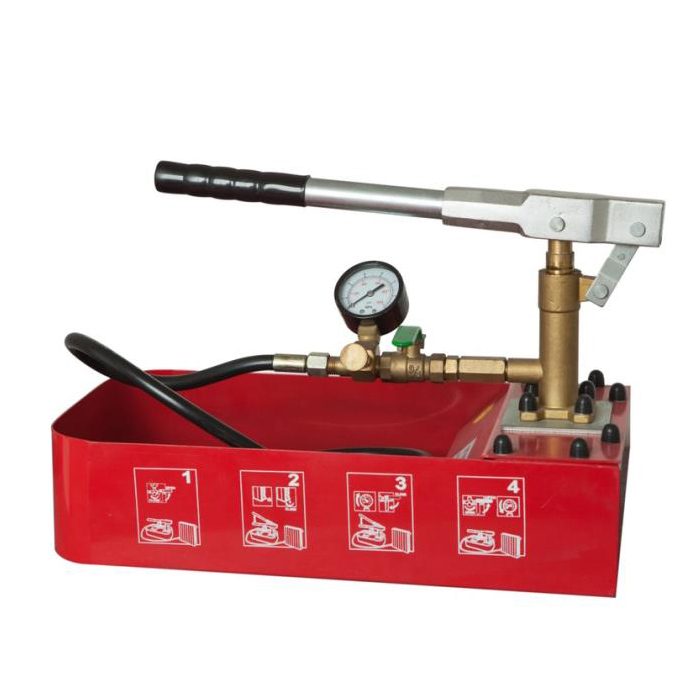

Name:ZD50 Pressure Test Pump
Model:ZD50
Flow:16ml
Tank capacity:7L / 10L
Pressure:60bar /860psi
Type:Water Piston Pump
Condition:New
Fluid:water or oil
Net Weight:4.3kgs
MOQ:1 set
Color:Red or customized
Unit Price:USD29-35

Product Description


Product Application

ZD-50 Hydrostatic Hand Test Pump is a self-contained, portable, low volume, high pressure pump that is Hand Powered. It is designed to pressurize fluids, in an effort to determine leakage and identify loss in test environment, including: water mains, pressure vessels, irrigation systems, fire sprinklers, fire hoses, sewer lines, steam lines, and boilers.

Hydraulically Tests
•Sprinkler Systems
•Refrigeration Systems
•Oil Installations
•Compressed Air Systems
•Bore Pipe Installations


Specification


Working Pressure

suction per stroke

Capacity of reservoir

Hose connection

Weight (inc.hose)

Dimension

(mm)

60 bar /860psi

16cc/16ml

7/10 litres

1/2" BSP

5/4.3 KG

525*200*290
