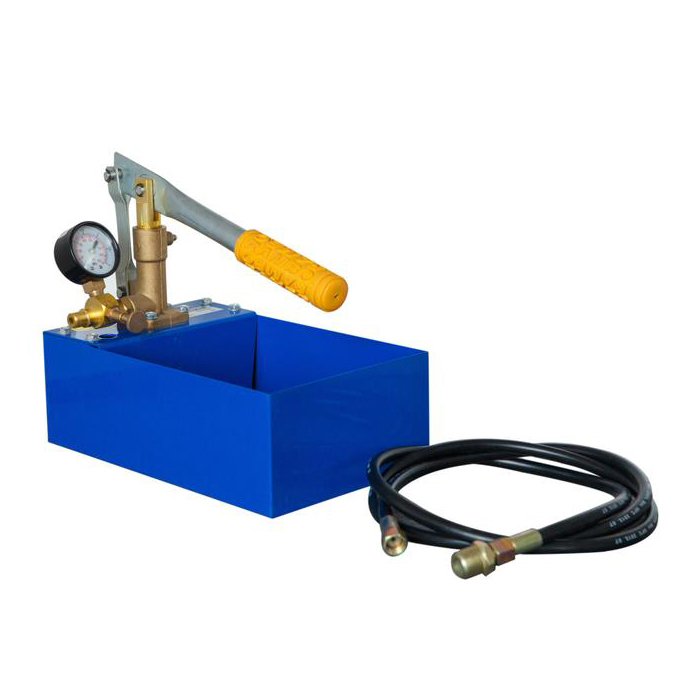

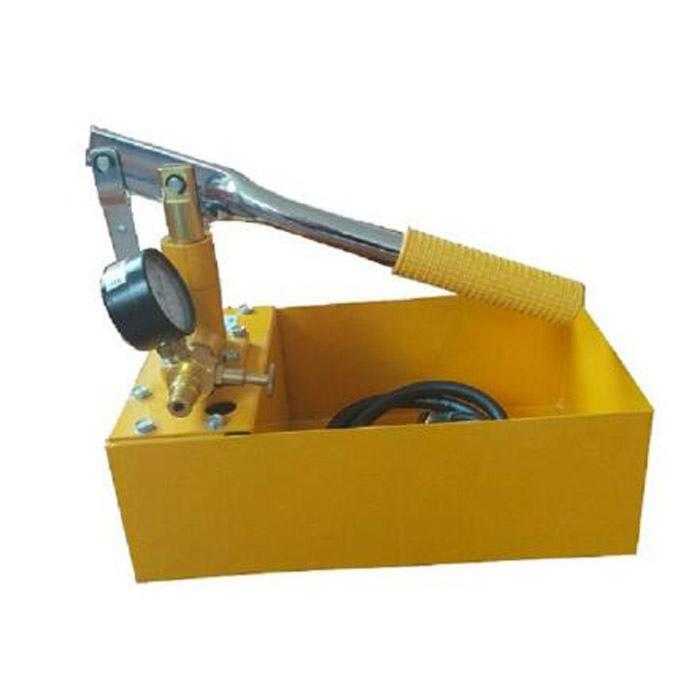

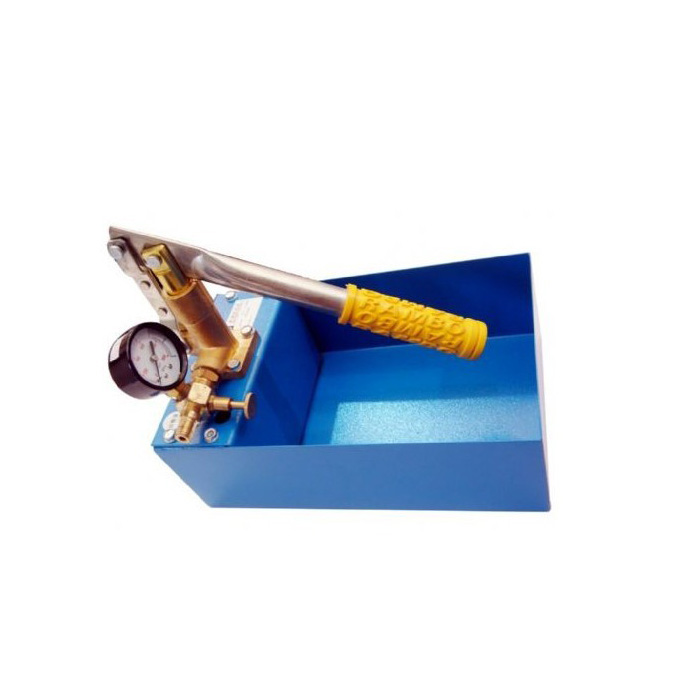

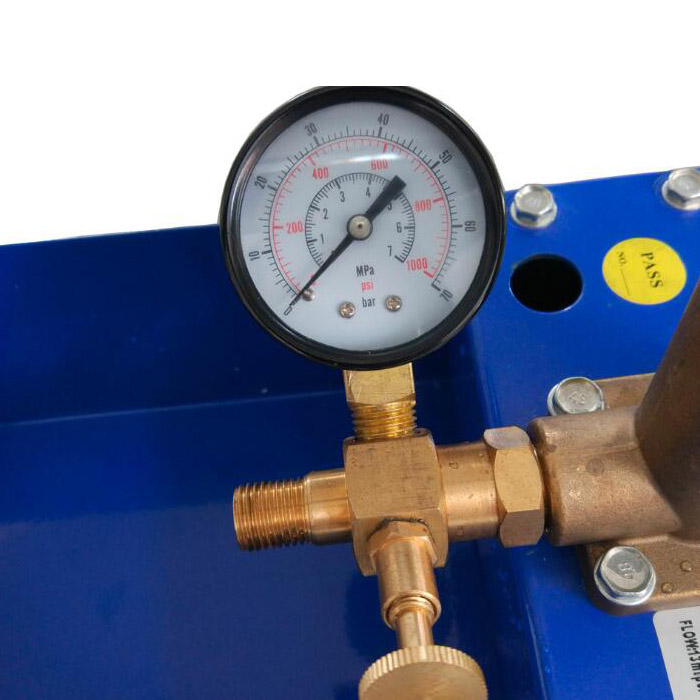

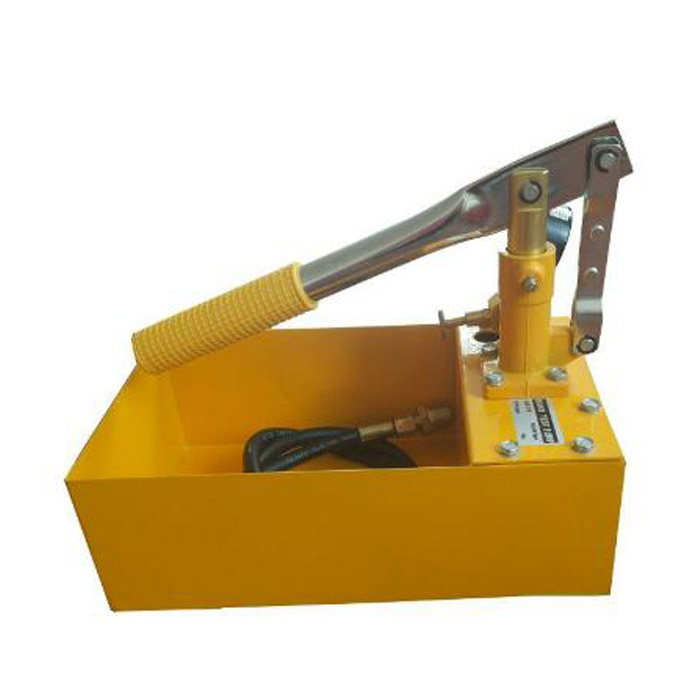

Name:Piston Hand Test Pump
Model:SY series
Pressure:25bar 40 bar 60 bar
Tank capacity:5L
Flow:13ML
Weight:4.5kg /5 kg
Pump material:Copper or Aluminum
Piston material:Aluminum
MOQ:1 set
Unit Price:Negotiable
Packing Size:32x20x26cm
OEM:Acceptable

Product Description


Product Application

Our Hydrostatic Hand Test Pump is a self-contained, portable, low volume, high pressure pump that is Hand Powered. It is designed to pressurize fluids, in an effort to determine leakage and identify loss in test environment, including: water mains, pressure vessels, irrigation systems, fire sprinklers, fire hoses, sewer lines, steam lines, and boilers.

Hydraulically Tests
•Sprinkler Systems
•Refrigeration Systems
•Oil Installations
•Compressed Air Systems
•Bore Pipe Installations



Specification

Remark :

Model no X :Pump Head :Copper   Piston :Aluminum

Model with X :Pump Head :Aluminum   Piston :Aluminum

Model with XX :Pump Head :Copper Piston :Aluminum    Tank : Plastic


ModelSY-16SY-25SY-40SY-60
Pressure max

1.6MPa

250Psi

16Kg/cm2

2.5MPa

350Psi

25Kg/cm2

4.0MPa

600Psi

40Kg/cm2

6.0MPa

900Psi

60Kg/cm2

Flow of stroke13c.c.13c.c.13c.c.13c.c.
Stroke35mm35mm35mm35mm
Capacity of water tank 5L5L5L5L
Weight4.5kg4.6kg5kg5kg
Meas LXHXW (cm)32X20x2632X20x2632X20x2632X20x26
Accessoriespressure hosepressure hosepressure hosepressure hose
tanksteel tanksteel tanksteel tank

steel tank


sy60 1.jpg
