Performance and features：

★Applicable to all specifications PE, HDPE, PP plastic pipe butt fusion welding Dn400-630 interval.
★The fixture with separately from the operating system, easy-laying operation.

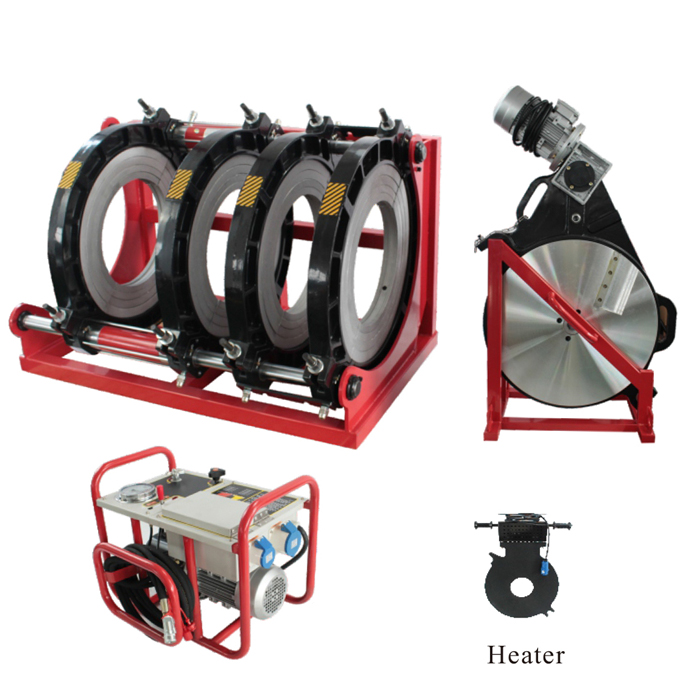

★By the operating platform (hydraulic, electronic), fixtures, heating plate and milling cutter.
★Hydraulic hoses and quick connectors for welding work more convenient and flexible.
★The frame is a high-strength aluminum alloy material, firm structure, 45 °tilt design.
★Fixture structure of the four-card sets to precisely position pipes, easy to adjust margins.

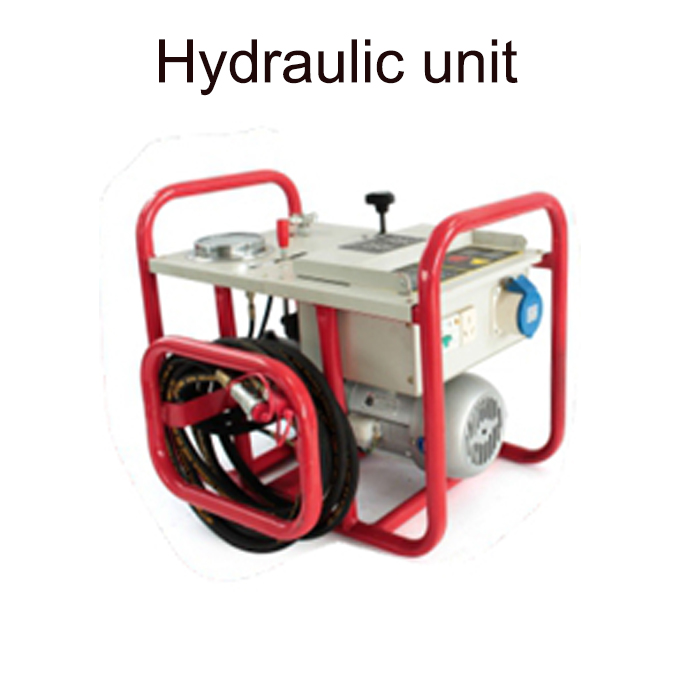

★Using hydraulic system control relay, pressure accurate and stable.

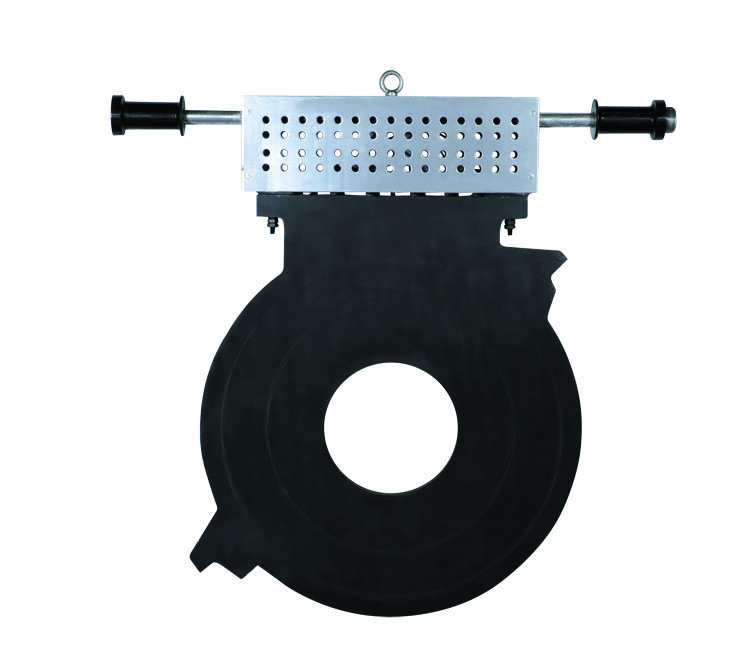

★Heating the board independent electronic temperature control system, digital display precise and intuitive.

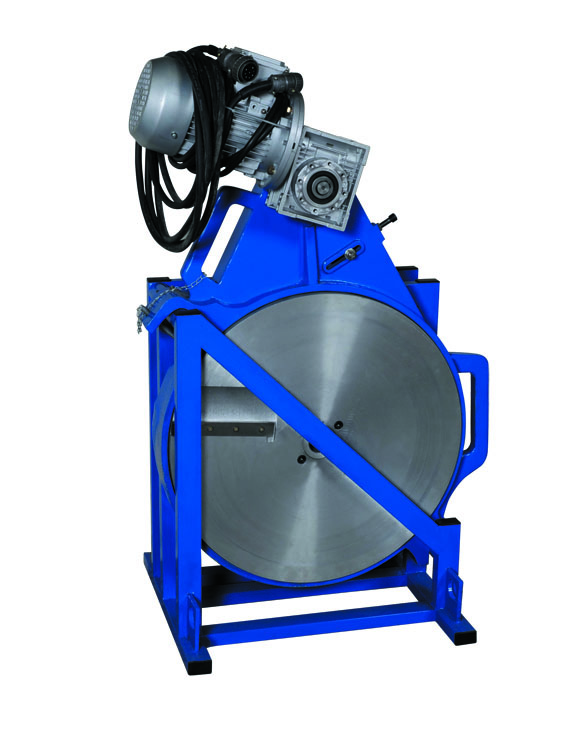

★Electric cutters, safety limit switch to prevent the cutter accidental activation.
★Solenoid valve electric control (cylinder retreat), easier to use.

  Basic technical parameters：
★Welding specifications：400，450，500，560，630
★Docking deviation：≤0.5mm
★Temperature error：±3℃
★Total power consumption：12.2KW/380V
★Working pressure of the hydraulic system：0-6MPA
★Operating Temperature：0－300℃
★Ambient temperature：－5~+45℃
★The time required to reach welding temperature：＜20MIN
★Weldable materials：PE PP PB PVDF
