Performance features：

★Applicable to all specifications PE, HDPE, PP pipe fittings butt fusion interval.

★Fixture rack separate from the operating system, easy-laying operation.

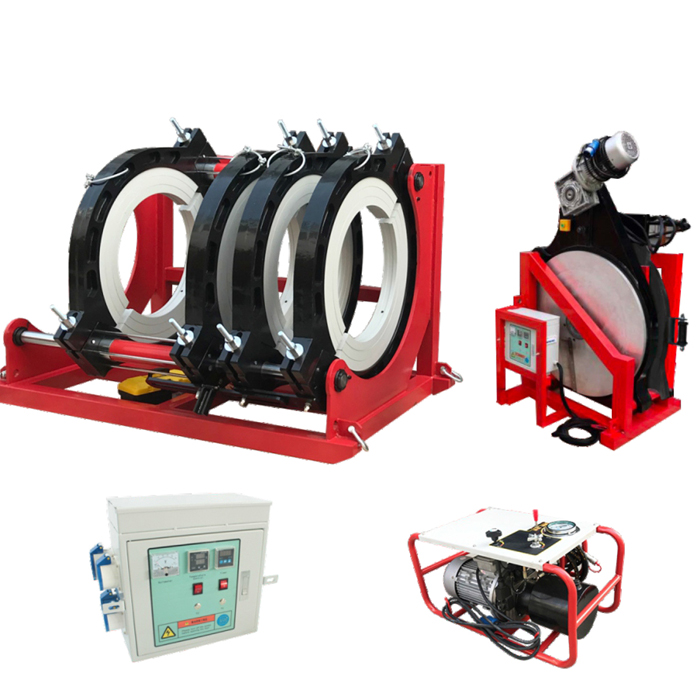

★By the the hydraulic console, docking rack (including slips groups), heating plate, milling machine, electric control box parts.

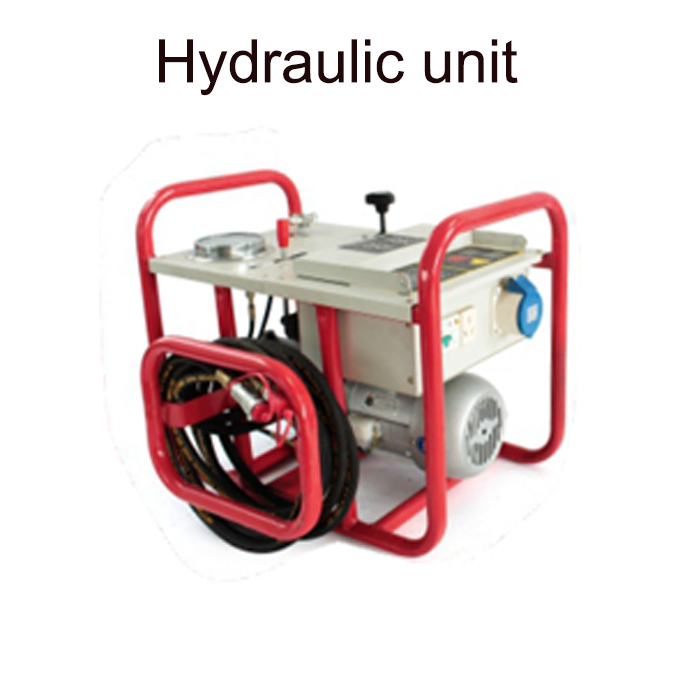

★Hydraulic hoses and quick connectors for welding work more convenient and flexible.

★The frame is a high-strength aluminum alloy material, firm structure, 45 ° tilt design.

★Fixture structure of the four-card sets to precisely position pipes, easy to adjust margins.

★The hydraulic control system to provide the driving force, docking, packing, accurate and stable pressure.

★Heating plate with electronic temperature control, high temperature coating of non-stick material, digital display precise and intuitive.

★Electric milling machines use double-sided blade automatically outwards guide crumbs, safety limit switch to prevent accidental activation.

★Solenoid valve electric control (cylinder retreat), easier to operate.

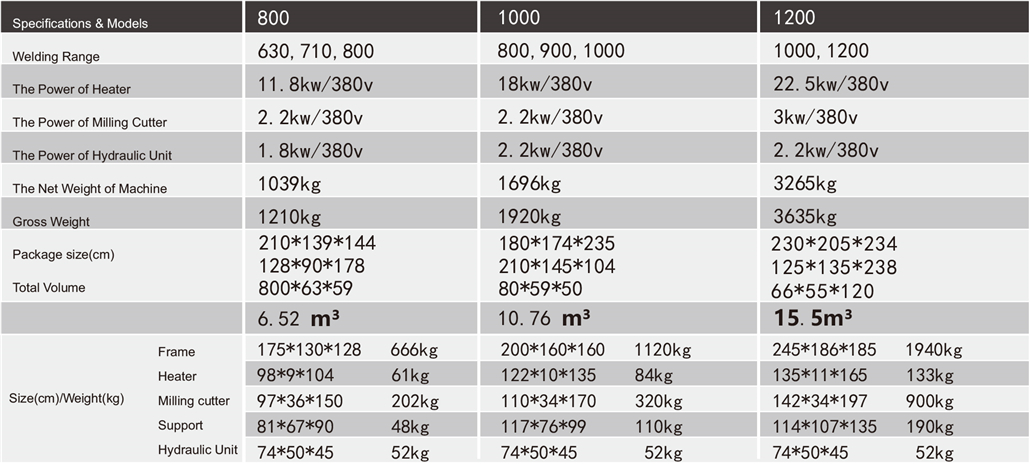

 Basic technical parameters：

Model No:HDC1000

★Wding specifications (mm)：800、900、1000

★Docking deviation：≤0.7mm

★Temperature error：±5℃

★Total power consumption: 19KW/380V (hot plate: 13KW, milling machine: 3KW, hydraulic station 3KW)

★Working pressure of the hydraulic system：0-16MPA

★Operating Temperature：0－300℃

★Ambient temperature：－5~+45℃

★The time required to reach welding temperature：20-30MIN

★Weldable materials：PE PP PB PVDF
