| Name: | Dn200 Hydraulic Butt Fusion Welding Machine |
|---|---|
| Model: | HDC200 |
| Type: | Hydraulic |
| Packing volume: | 0.42cbm |
| Net weight of machine: | 96.4kg |
| Gross weight: | 125kg |
| Price: | Email Us |
| Welding Range: | 63-200mm |
● Apply to Dn60-200 PE, HDPE, PP and other plastic pipe butt fusion welding.
● The fixture with separately from the operating system, easy-laying operation.

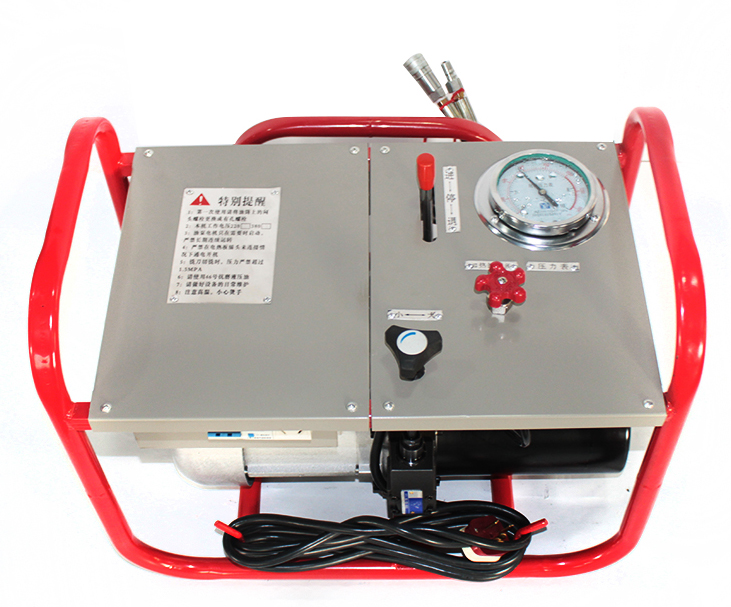

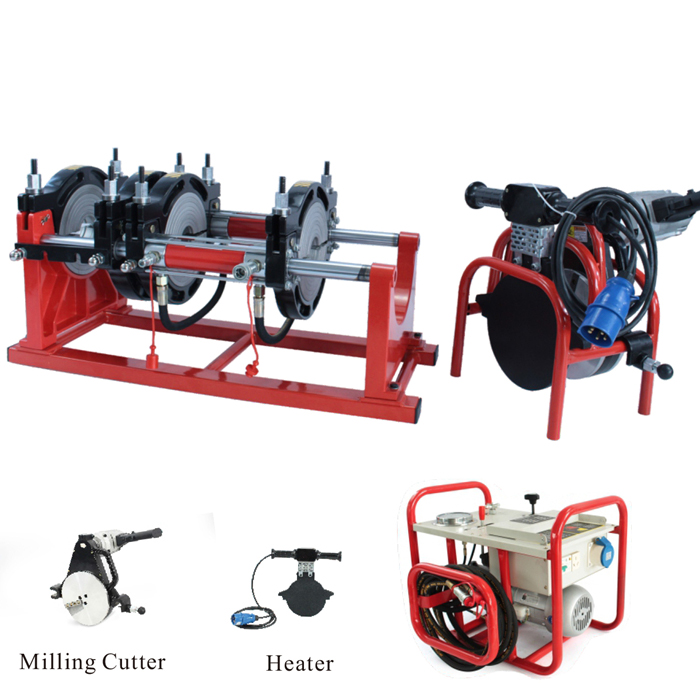

● By the operating platform (hydraulic and electrical), fixtures, heating plate and milling cutter.

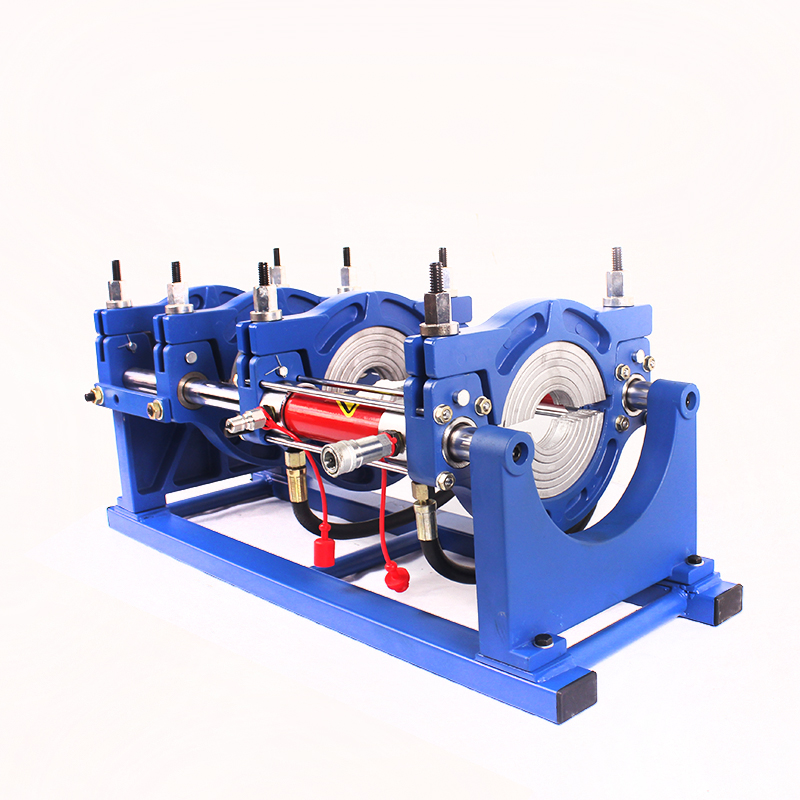

● Fixture structure, dual-card sets precisely position pipes, easy to adjust margins.
● Using hydraulic system control relay, pressure accurate and stable.
● Solenoid valve electric control (cylinder retreat), easier to operate.
● Heating plate with electronic temperature control, digital display precise and intuitive.
SPECIFICATIONS FOR HDC200 HDPE BUTT FUSION WELDING MACHINE | |||
Model | HDC200 | ||
Welding Range | Dn63,Dn75,Dn90,Dn110,Dn125,Dn140,Dn160 ,Dn180,Dn200 | ||
Temperature Range | 0℃~300℃ | ||
Temperature variable | ±5℃ | ||
Power of Heating Plate | 2KW/220V | ||
Power of Planning Tool | 1.0KW/220V | ||
Hydraulic station power | 0.75 KW | ||
Power Supply | 220V, 50Hz | ||
Max.working pressure | 6.3Mpa | ||
