  • Dn315 Hydraulic butt fusion welding machine
  • Dn315 Hydraulic butt fusion welding machine

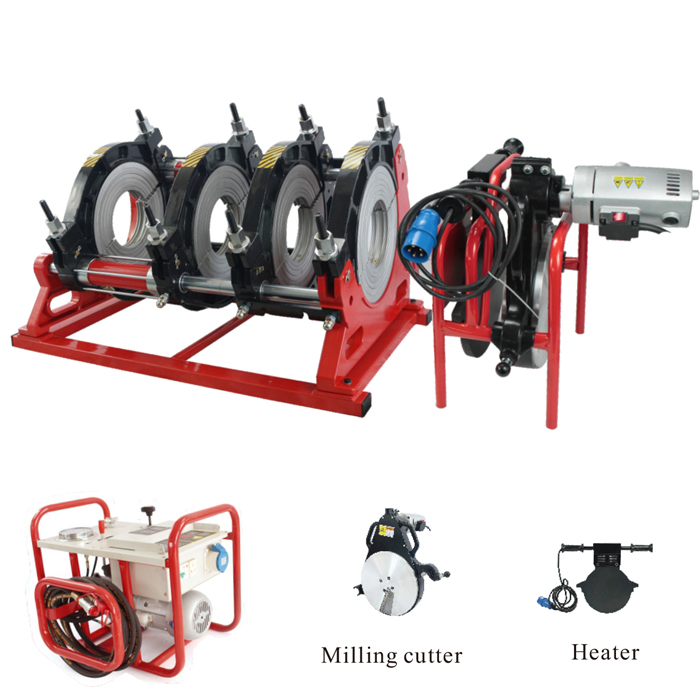

Name:Dn315 Hydraulic butt fusion welding machine
Model:HDC315
Type:Hydraulic
Range:90-315
Unit price:negotiable
Net weight:154kg
Gross weight:190kg
Total volume:0.72cbm
OEM:Acceptable

Product Description


Uses and Features

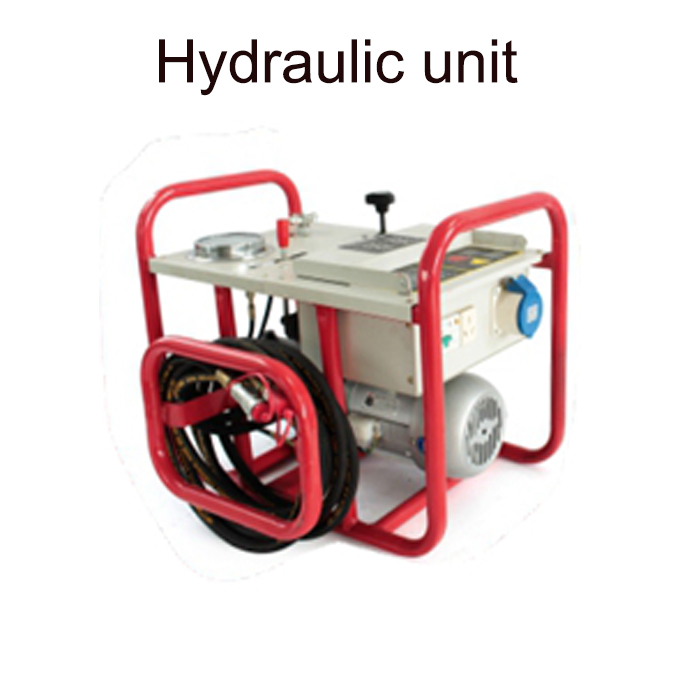

◆Electric Unit and hydraulic unit integrated design, easy to operate;

◆Use explosion-proof industrial socket, safer operation;

◆5cm aluminum clamps, more stable and durable;

◆Independent temperature control system, temperature control more stable, Dakin teflon coating non-stick tube;

◆Milling cutter with gear transmission, cutting and milling more stable;

◆Double channel timer is used to record heat absorption and cooling time, which is convenient to use;

◆High precision shock-proof pressure gauge, low temperature resistance, more accurate pressure reading.


SPECIFICATIONS FOR HDC315 HDPE BUTT FUSION WELDING MACHINE

Model

HDC315

Welding Range

Dn160、Dn180、Dn200、Dn225、Dn250、Dn280、Dn315

Temperature Range

0℃~300℃

Temperature variable

±5℃

Power of Heating Plate

3,1KW/220V

Power of Planning Tool

1.2KW/220V

Hydraulic station power

0.75 KW

Power Supply

220V, 50Hz

Max.working pressure

6.3Mpa
