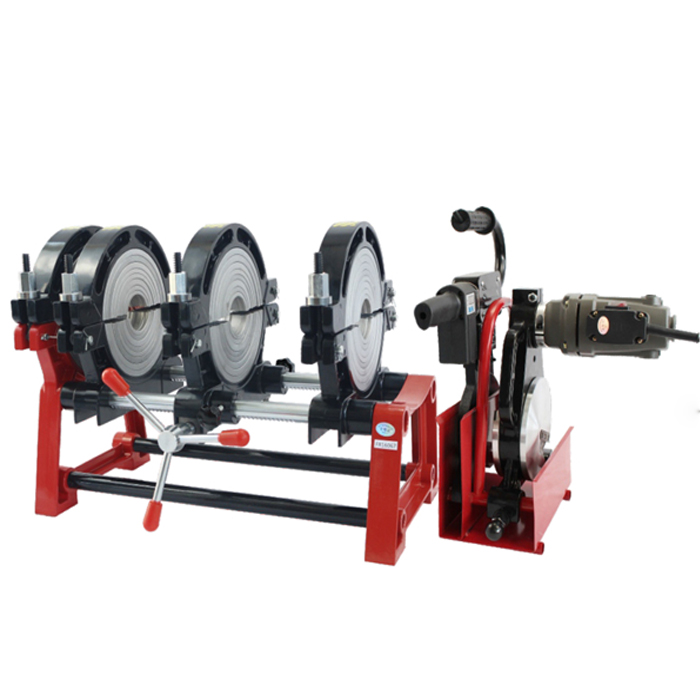

| Name: | Dn160 HDPE Manual Butt Fusion Welding Machine |
|---|---|
| Model: | HD160-4C |
| Type: | Screw hand type |
| Welding range: | Dn50-Dn160 |
| Net weight of machine: | 36KG |
| Gross weight: | 40KG |
| Price: | Email Us |
| time temperature: | less 20 min |
| OEM: | Acceptable |
●Applicable to 63,75,90,110,125,140,160 PE, HDPE, PP plastic pipe hot melt welded connection.

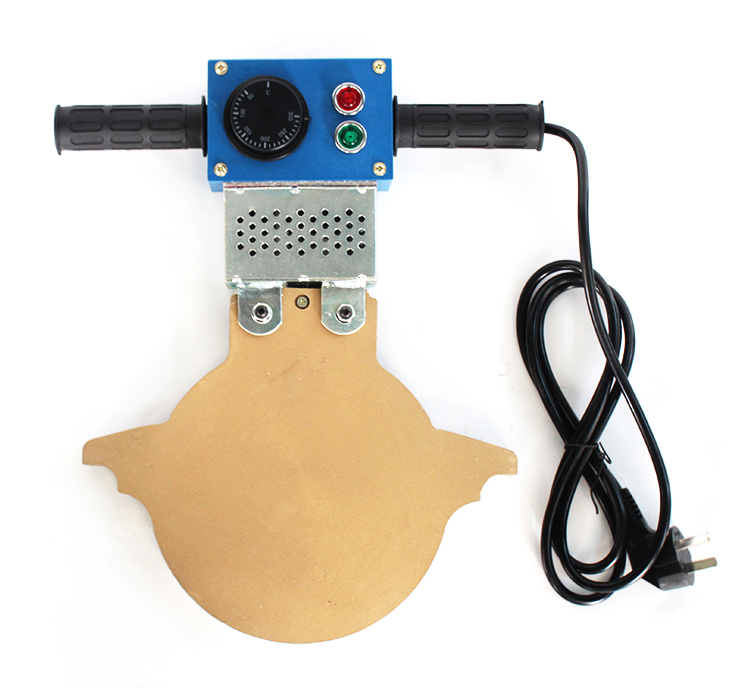

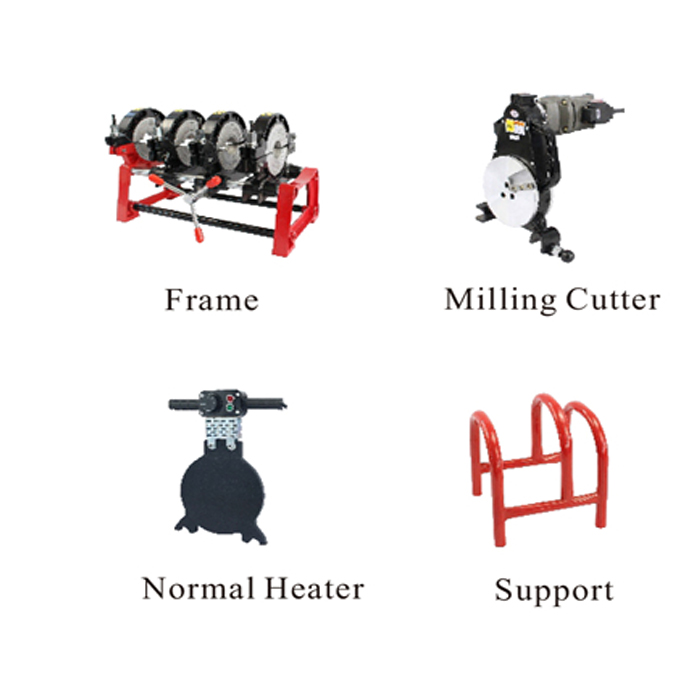

● Composed of three parts of the fixture rack, heating plate, milling machine (its basket rack).
●Reasonable engineering and mechanical design for welding work more convenient and flexible.

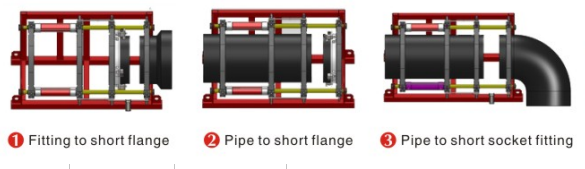

Card sets gland unilateral fixed clamshell structure makes the short welding process more effective.
●locking mechanism to avoid welding by external influences.
●Provide welding pressure from the crank drive mechanical transmission smooth, easy operation.

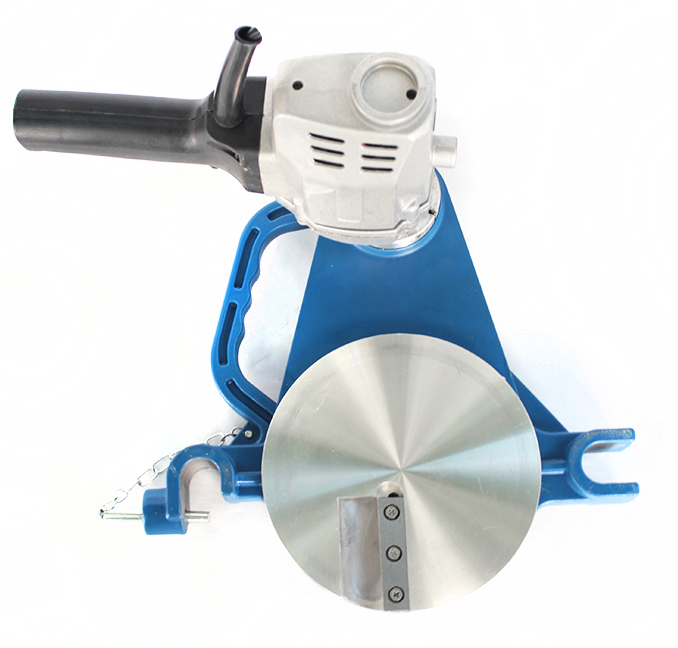

●The motor-driven cutting milling cutter.
SPECIFICATIONS FOR HDA200 HDPE BUTT FUSION WELDING MACHINE | |||
Model | HD160-4c | ||
Welding Range | Dn63,Dn75,Dn90,Dn110,Dn125,Dn140,Dn160 | ||
Application | PE PP PPR PVDF | ||
Temperature Range | 0℃~300℃ | ||
Temperature variable | ±5℃ | ||
Power of Heating Plate | 1.6KW/220V | ||
Power of Planning Tool | 0.83KW/220V | ||
Power Supply | 220V, 50Hz | ||
Max.working pressure | 6.3Mpa | ||
