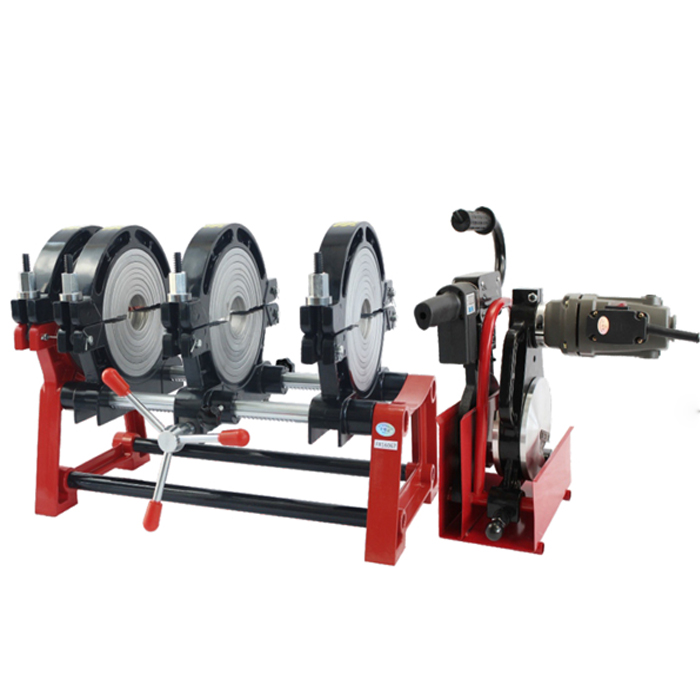

| Name: | Dn200 PE Manual Butt Fusion Welding Machine |
|---|---|
| Model: | HD200-4C |
| Type: | Manual Electric |
| Welding Range: | Dn63 Dn200 |
| Unit price: | negotiable |
| Net weight: | 40kg |
| Gross weight: | 46kg |
| time temperature: | less 20 min |
●Applicable to 63,75,90,110,125,140,160 ,180,200mm PE, HDPE, PP plastic pipe hot melt welded connection.

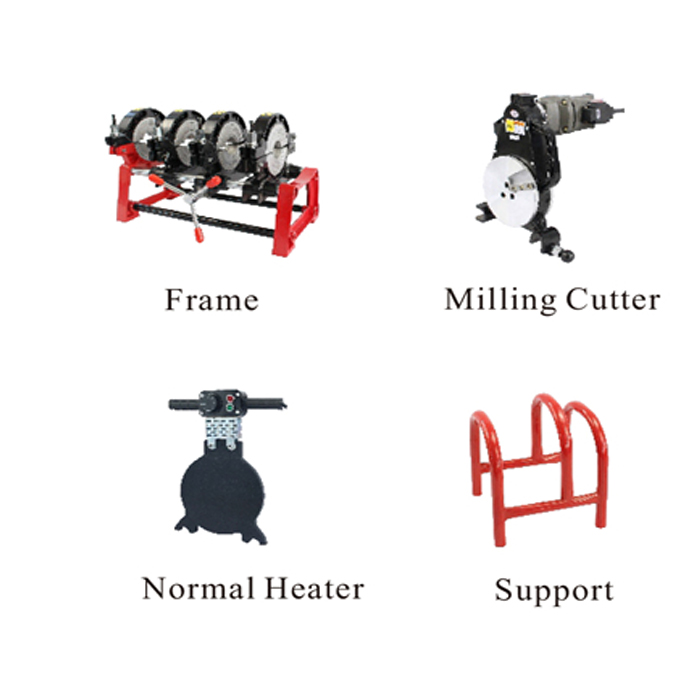

● Composed of three parts of the fixture rack, heating plate, milling machine (its basket rack).
●Reasonable engineering and mechanical design for welding work more convenient and flexible.

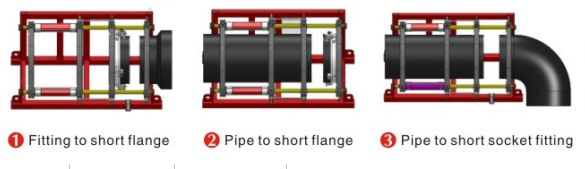

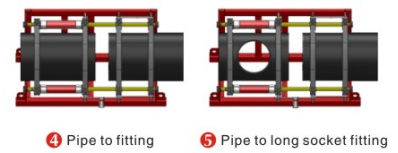

Card sets gland unilateral fixed clamshell structure makes the short welding process more effective.
●locking mechanism to avoid welding by external influences.
●Provide welding pressure from the crank drive mechanical transmission smooth, easy operation.

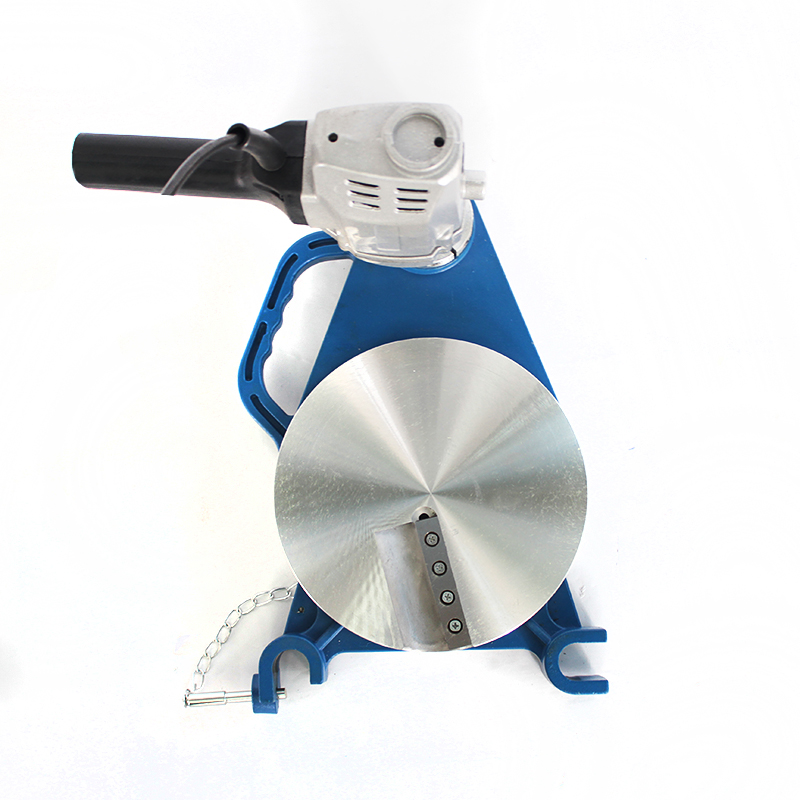

●The motor-driven cutting milling cutter.
SPECIFICATIONS FOR HD200 HDPE BUTT FUSION WELDING MACHINE | |||
Model | HD200-4c | ||
Welding Range | Dn63,Dn75,Dn90,Dn110,Dn125,Dn140,Dn160 ,Dn180.Dn200 | ||
Application | PE PP PPR PVDF | ||
Temperature Range | 0℃~300℃ | ||
Temperature variable | ±5℃ | ||
Power of Heating Plate | 2KW/220V | ||
Power of Planning Tool | 0.9KW/220V | ||
Power Supply | 220V, 50Hz | ||
Max.working pressure | 6.3Mpa | ||
