Featuring

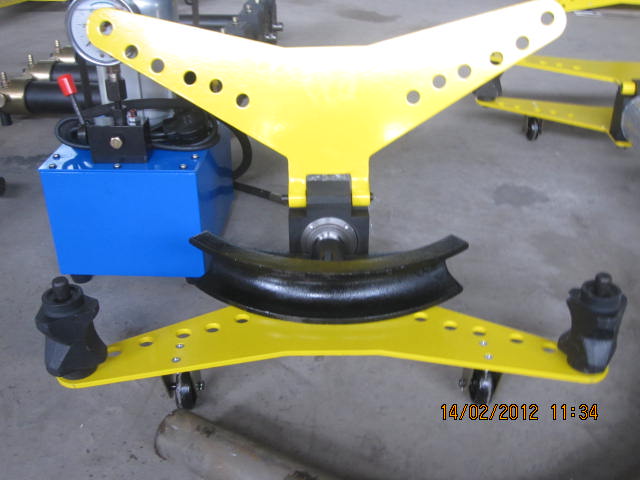

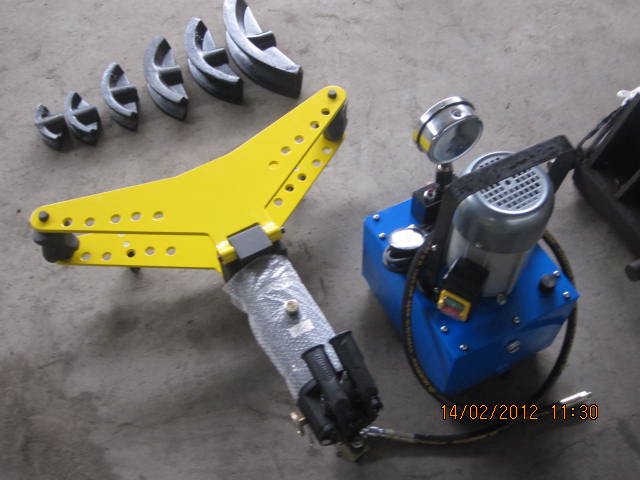

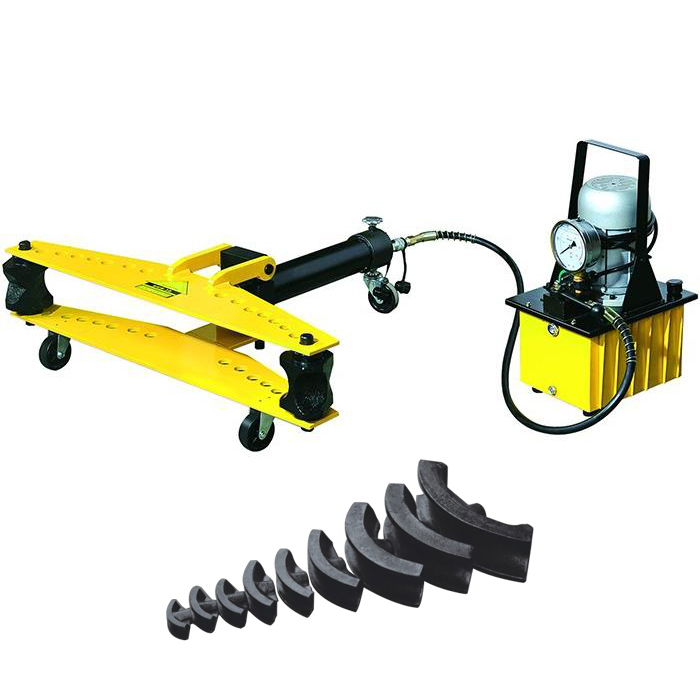

1.Electric hydraulic bender up to 4” pipe .

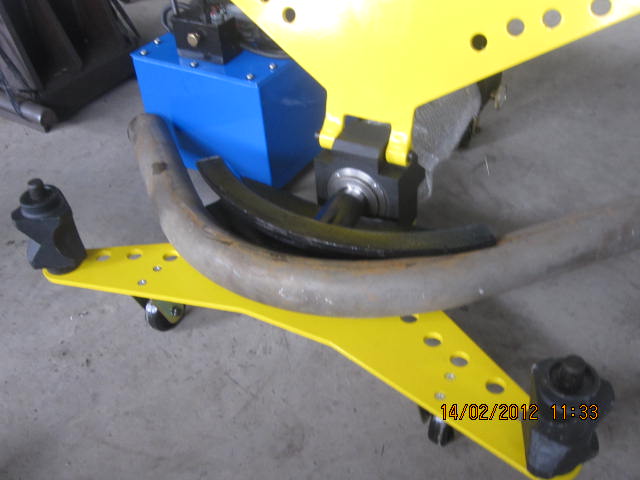

2.Using range:applicable to general pipe, conductor pipe, gas pipe, the thick steel pipe,etc., bending Angle to 90 degree.
3.All bending dies are made of cast iron than ordinary grey cast iron .With high strength, good toughness and plasticity, more resistant to use, not easy to break.
4.Fast setup and disassembly ,convenient removing with bottom wheels.

5.Stands are optional instead of bottom wheels.

Specifications

Model:DWG-4
Pipe wall thickness :2.75-4.5mm
Bending dies: 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3",4"
Max stroke :370mm

Motor:750W

 Pump: 62Mpa   Bending angle : 180°-90°

Hydraulic Oil:N15  Bends radius : 4D

Capacity:1/2"-4"

Weight: 210KGS

(electric)21.3×2.75　26.7×2.75　33.5×3.25

Dia.（Ф） 42×3.25　48×3.5　60×3.5

75.5×3.75　88.5×4.0　 108*4.5

 Net Weight 207Kg  Shape Dimensions   122*44*45cm
