Featuring

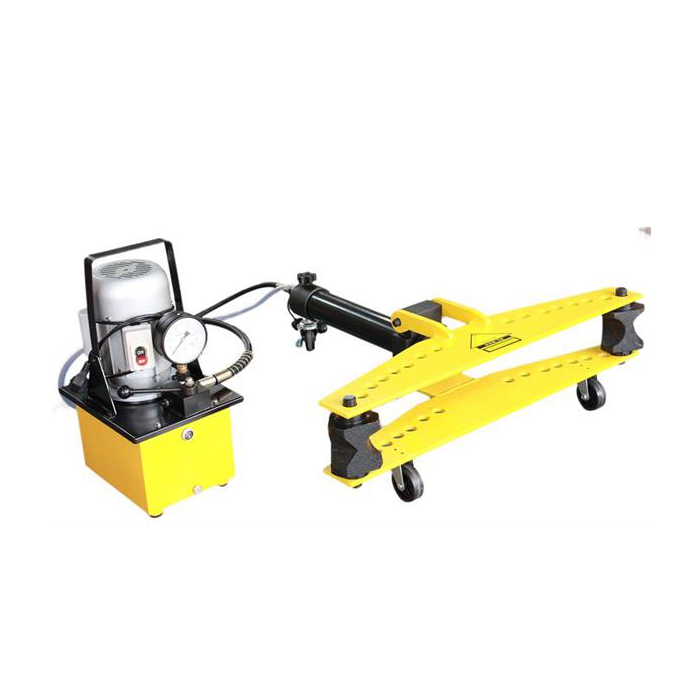

1.Electric hydraulic bender up to 3” pipe .
2.Using range:applicable to general pipe, conductor pipe, gas pipe, the thick steel pipe,etc., bending Angle to 90 degree.

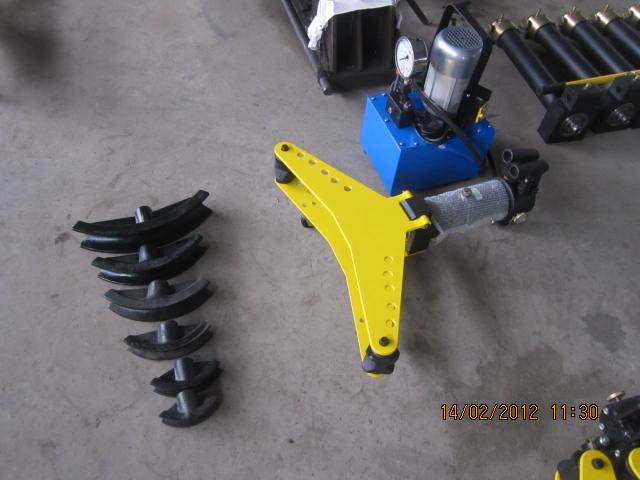

3.All bending dies are made of cast iron than ordinary grey cast iron .With high strength, good toughness and plasticity, more resistant to use, not easy to break.
4.Fast setup and disassembly ,convenient removing with bottom wheels.
5.Stands are optional instead of bottom wheels.

Specifications
Model:DWG-3

Bending angle : 180°-90°

Bends radius : 4D

Capacity:1/2"-3"

Bending dies: 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3"
Max stroke :290mm
Motor:750W

Weight: 150KGS

Shape Dimensions:96*45*54cm

(electric)21.3×2.75　26.7×2.75　33.5×3.25

Dia.(Ф） 42×3.25　48×3.5　60×3.5

75.5×3.75　88.5×4.0
