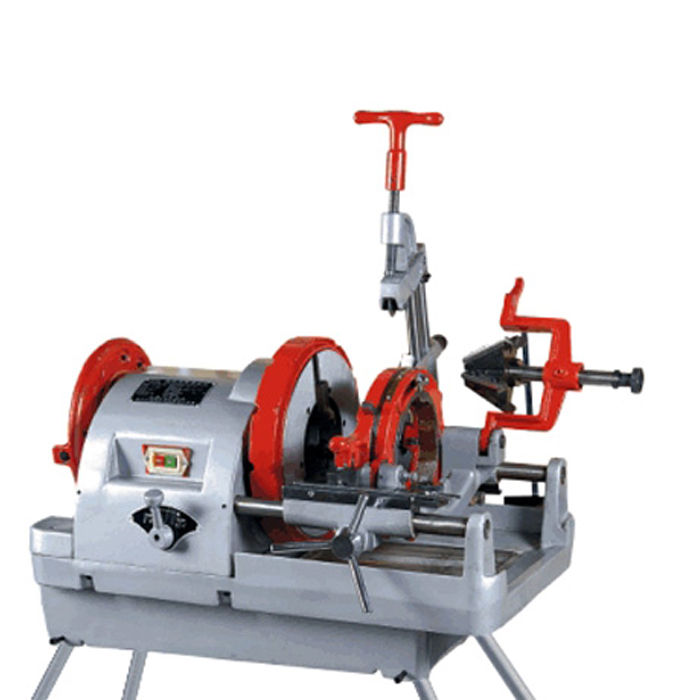

| Name: | 6 inch Electric Pipe Threader |
|---|---|
| Model: | ZIT R6 |
| Condition: | New |
| Thread capacity: | 21/2 and 6 inch |
| Die head: | 21/2" to 4 inch and 5 inch to 6 inch |
| Threading dies: | two sets |
| Power Supply: | 380v 50/60Hz |
| Motor Power: | 1100W |
| Rotation: | 10-23r/min |
| Net Weight: | 210kg |
| Gross Weight: | 230kg |
| Packing Size: | 106×72×70cm |
| MOQ: | 1 SET |
Features:
This ultimate in 6” is specifically designed for 150mm pipes.
Automatic lubrication through the head directly on the Dies.
Oil pump for the mechanical system (gear box) with oil flow rate selector according to size.
Spindle speed: 18/6 rpm
Rated voltage: 380v / 50 /60hz
Powder: 1100 watt
Accessories :

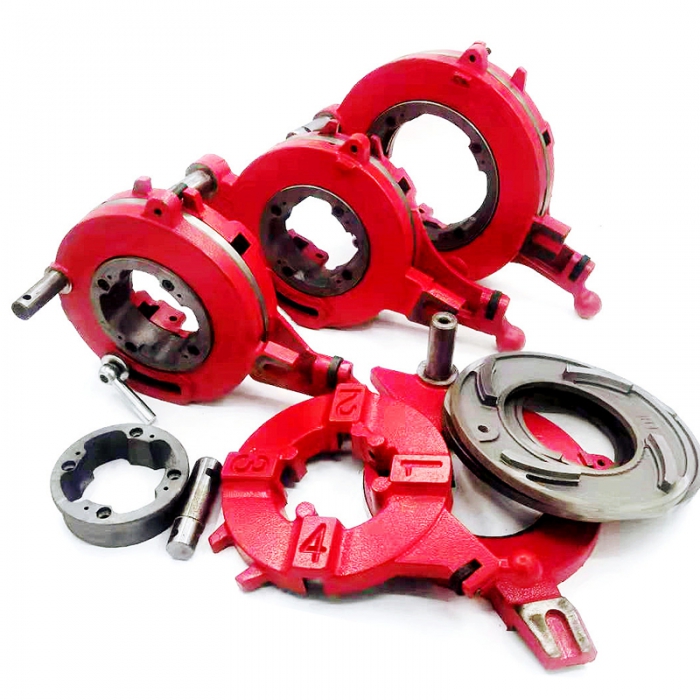

one sets die head assembly 21/2" -4"
one sets die head assembly 5“-6”,

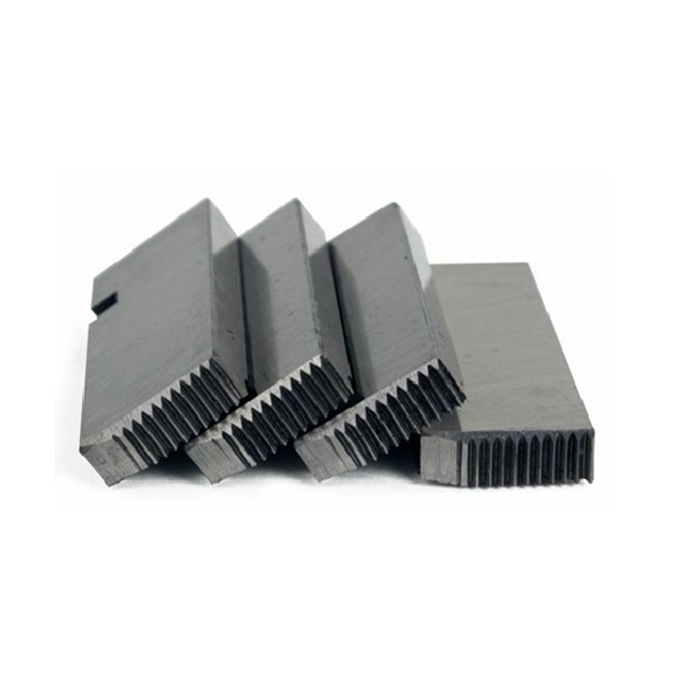

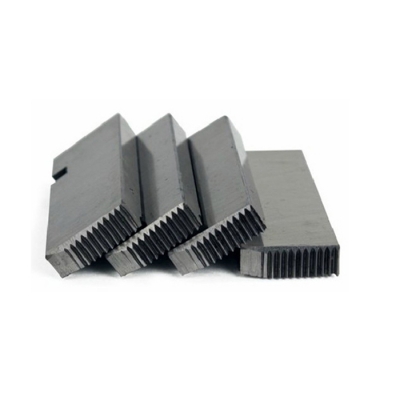

right BSPT /NPT Dies sets (2.1/2”-4”)
right BSPT /NPT Dies sets (5”-6”),
3 Support legs
1 cutting oil canister
one set of mounting tools.
Warranty
ONE YEAR Warranty for motor power .
Die head and threading dies are quick wear parts , you can order extra parts of them .
