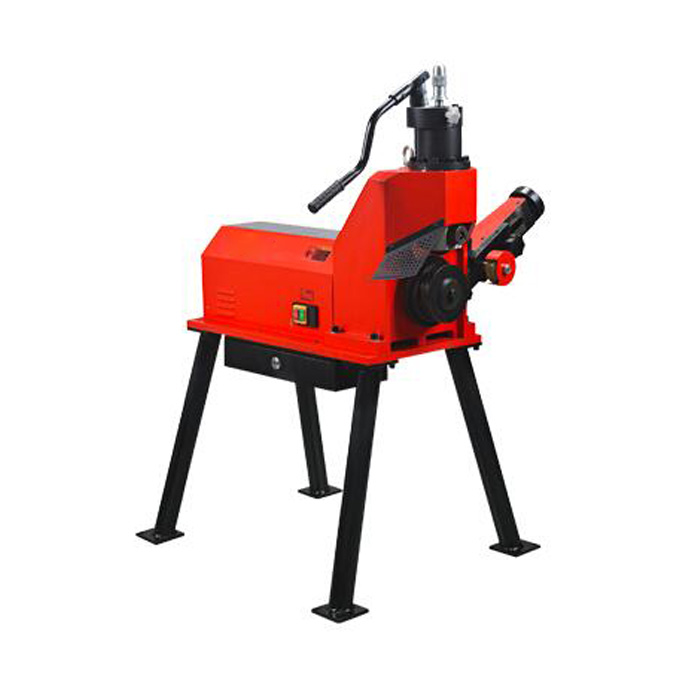

This machine is designed for grooving 8"-24" steel pipe. It' s specified tool for the connection of heavy duty couplings and grooved pipes

Capacity
8"-24"(∅219-∅630)SCH40 steel pipe

Max. wall thickness:13mm
Output RPM:15rpm
G.W: 340kgs
Packaging size: 102X75X147(cm)

Powered by high-performance gear reducing motor, equipped with the guide wheel unit ensures high quality grooves and high working efficiency

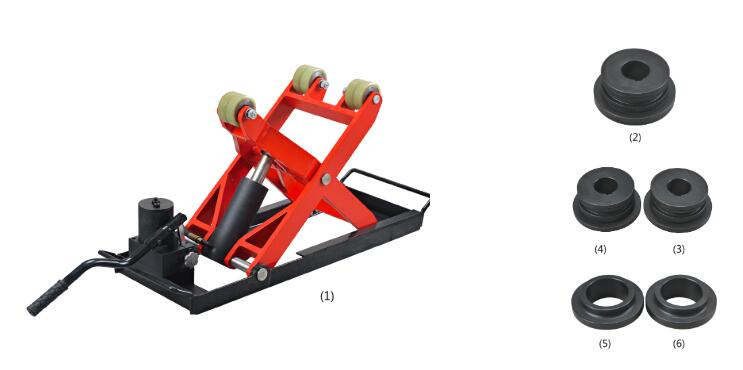

Equipped with a foldable hydraulic steel pipe stand to make operation convenience and save labour.

Equipped with new hydraulic pump and stroke limitation devices to make the depth of grooves more precisely and effectively
