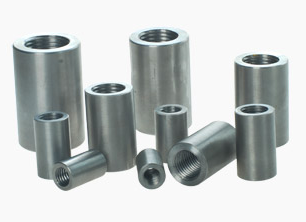

| Name: | Reducing rebar coupler/sleeve/Bar Break Couplers |
|---|---|
| Name: | Rebar connector |
| Material: | Carbon Steel |
| Thread Angle: | 60°/75°/As customers request |
| Suitable Rebar: | HRB335, HRB400, Equivalent Rebar |
| Thread Pitch: | 2.0-4.0mm |
Product Description

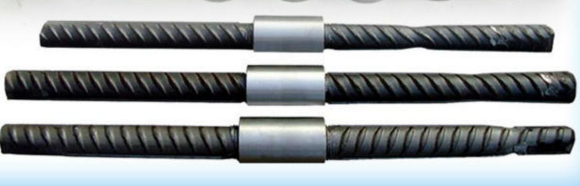

Reducing rebar coupler/sleeve/Bar Break Couplers are a parallel thread mechanical splicing system designed for the connection of concrete reinforcing bars from ¢12-¢50mm. It can be largely applied to constructions, bridges, subway or tunnels.
Product Feature
1 |
Continuity of reinforcing bars |
2 |
High work efficiency, no flame, no pollution, not influenced by weather and work-site |
3 |
Produced by Automatic CNC rebar coupler production line, more accurate thread dimension and pitch, nicer appearance treating and higher strength and strictly quality control |
4 |
High strength: tensile test more than 600 MPA, can reach 110% of yield strength of parent rebar |
5 |
25 % to 60 % Cost saving against lapping |
6 |
Passed ISO9001-2008 International Quality System Certification |
7 |
Reached JDJ107, JG/T163 standard for the Grade I splicing rebar joint |
8 |
Design service, OEM service and buyer label offered |

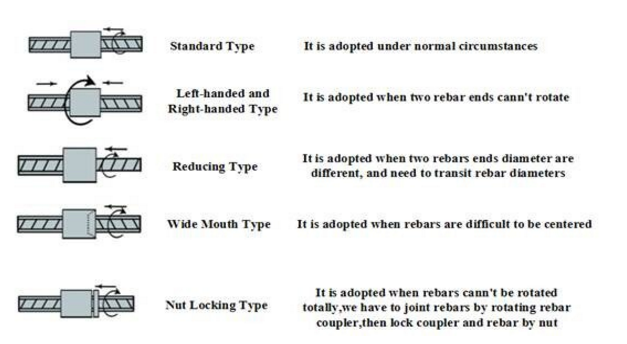

Types of the rebar connector
Technical Parameters
Coupler Size |
Outer Diameter (-0.5~0mm) |
Inner Diameter (mm) |
Length (-2.0~0mm) |
Thread Size |
Thread Angle |
D12 |
19.5 |
10.25(+0.25) |
35 |
1.75 |
75° |
D14 |
21.5 |
12.2(+0.25) |
38 |
2.5 |
75° |
D16 |
25 |
14.4(+0.25) |
42 |
2.5 |
75° |
D18 |
27 |
16.4(+0.25) |
47 |
2.5 |
75° |
D20 |
30 |
18.4(+0.25) |
52 |
2.5 |
75° |
D22 |
32 |
20.4(+0.3) |
57 |
2.5 |
75° |
D25 |
37 |
23.2(+0.3) |
