| Name: | 160mm 200mm Hydraulic butt fusion welding machine |
|---|---|
| Model: | HDC160 |
| Range: | 63-160 |
| Power: | 2.46kw |
| Unit price: | negotiable |
| Max.working pressure: | 6.3Mpa |
● Apply to Dn160 PE, HDPE, PP and other plastic pipe butt fusion welding.
● The fixture with separately from the operating system, easy-laying operation.

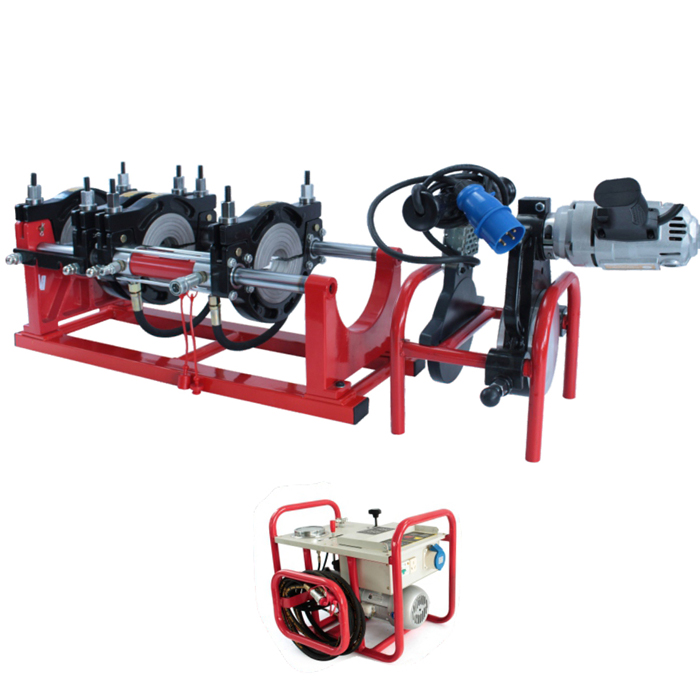

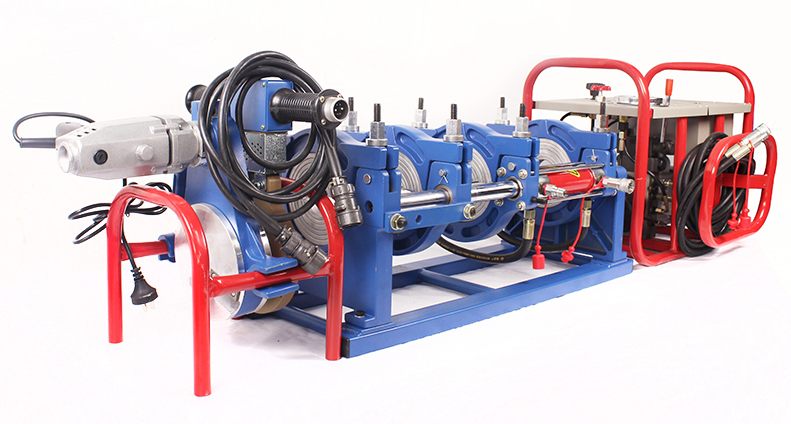

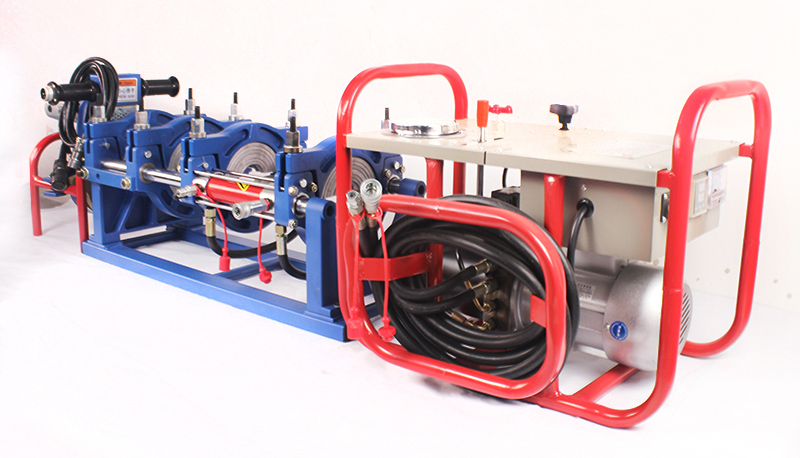

● By the operating platform (hydraulic and electrical), fixtures, heating plate and milling cutter.

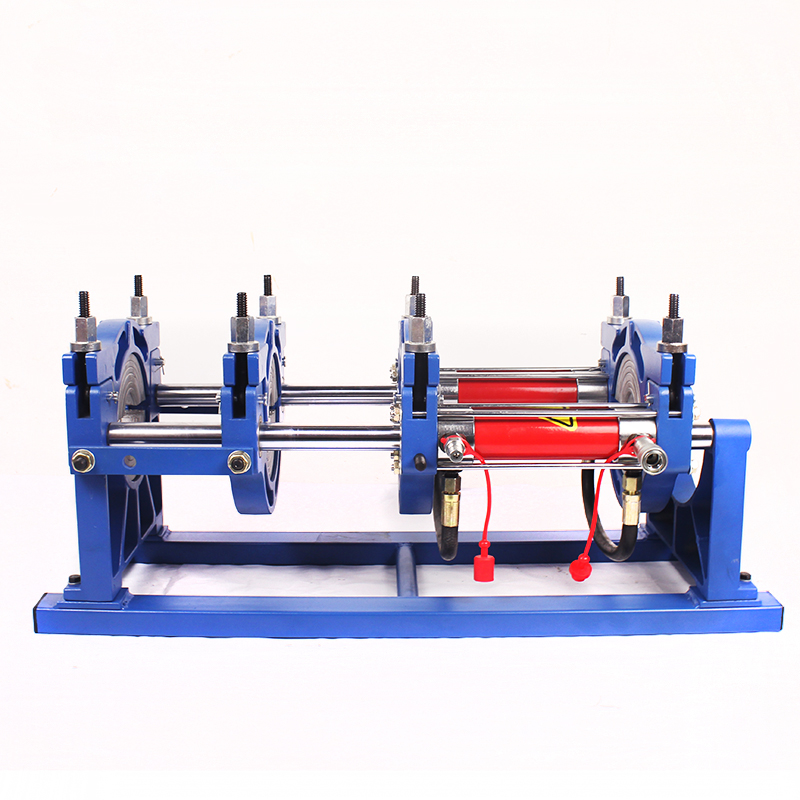

● Fixture structure, dual-card sets precisely position pipes, easy to adjust margins.
● Using hydraulic system control relay, pressure accurate and stable.
● Solenoid valve electric control (cylinder retreat), easier to operate.
● Heating plate with electronic temperature control, digital display precise and intuitive.
SPECIFICATIONS FOR HDC160 HDPE BUTT FUSION WELDING MACHINE | |||
Model | HDC160 | ||
Welding Range | Dn63,Dn75,Dn90,Dn110,Dn125,Dn140,Dn160 | ||
Temperature Range | 0℃~300℃ | ||
Temperature variable | ±5℃ | ||
Power of Heating Plate | 1.0KW/220V | ||
Power of Planning Tool | 0.71KW/220V | ||
Hydraulic station power | 0.75 KW | ||
Power Supply | 220V, 50Hz | ||
Max.working pressure | 6.3Mpa | ||
