| Name: | Automatic Pipe Threader |
|---|---|
| Model: | SQ50F |
| Rated Voltage: | 110V/220V 50/60HZ |
| No-Load Speed: | 38rpm |
| Capacity: | 2inch |
| Motor: | 1500W |
| Rated Input Power: | 1500W |
| Application: | PIPE THREAD |
| Die head: | quick-opening die head 1/2 |
| Net weight: | 80kg |
| Gross weight: | 96kg |
| Packing Size: | |

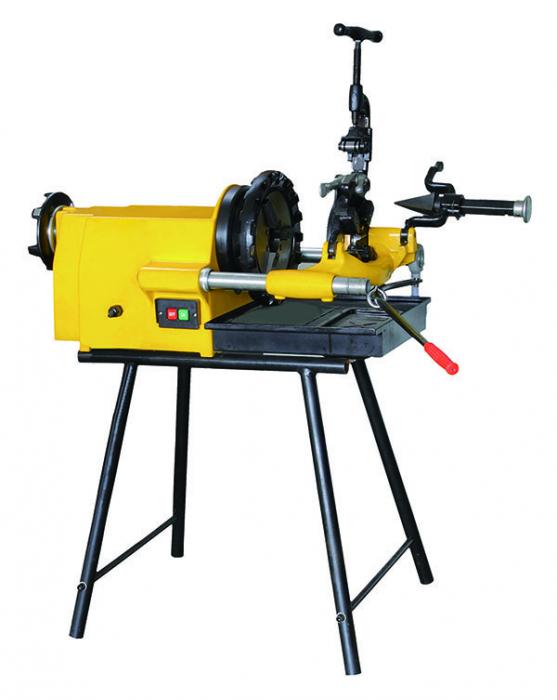

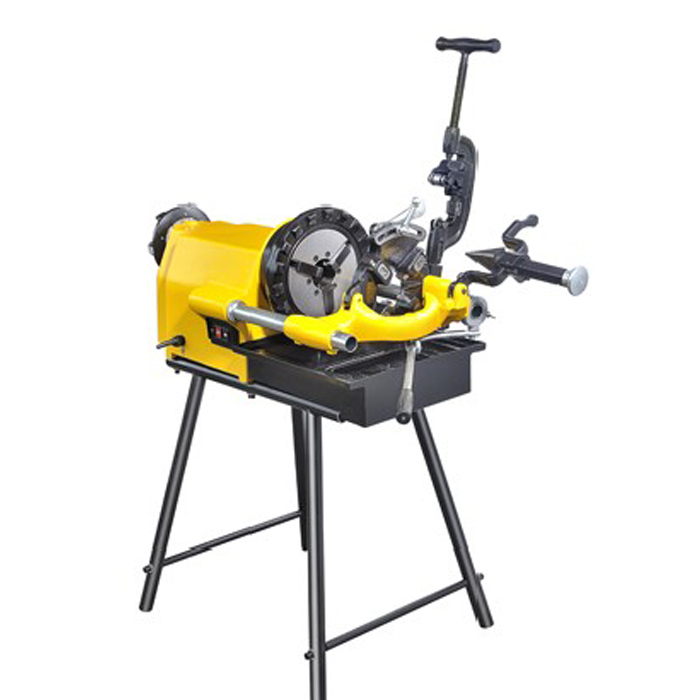

BOL SQ50F Compact Pipe Thread Cutting Machine
Features
Heavy-duty proven performance.
1.5KW induction motor ensures quiet
operation with high speed.
Self-Contained Oil System with adjustable flow control.
Approved by CSA and CE standards.
Specifications
Motor: 1500 W induction, 50/60 Hz
Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch are optional
Spindle Speed: 38 RPM.
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow
Standard Equipment
Model SQ50F Threading Machine with stands.
Quick-open die head.

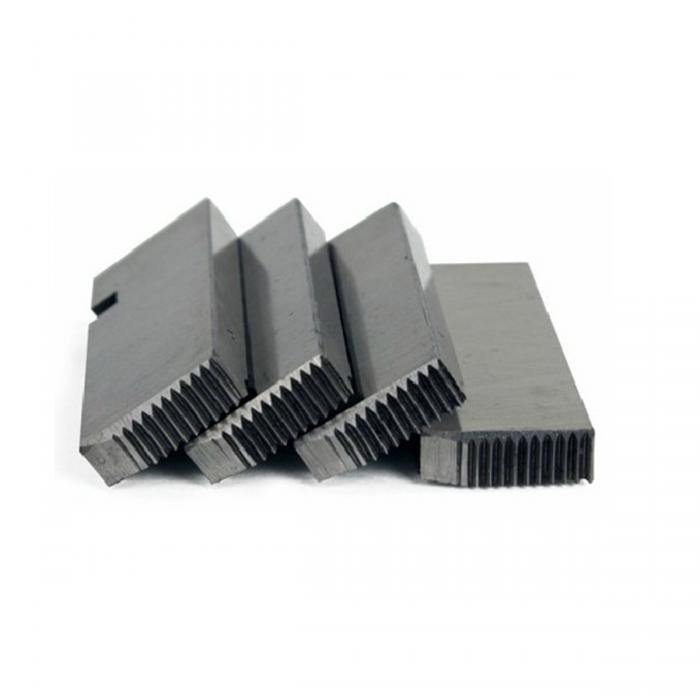

½”-¾” universal HSS dies set.
1”-2” universal HSS dies set.
Cutter: Capacity: 1/8”-2”(3 mm-50 mm) pipe
Reamer: Positive-locking, 5-flute cone, right hand 1/8”-2”(3 mm-50 mm).
Ordering Information
| CatalogNo. | Model No. | Description |
| SQ50F | 110 V, 50/60 Hz | |
| SQ50F | 220 V, 50/60 Hz |
Accessories
| Catalog No. | Model No. | Description |

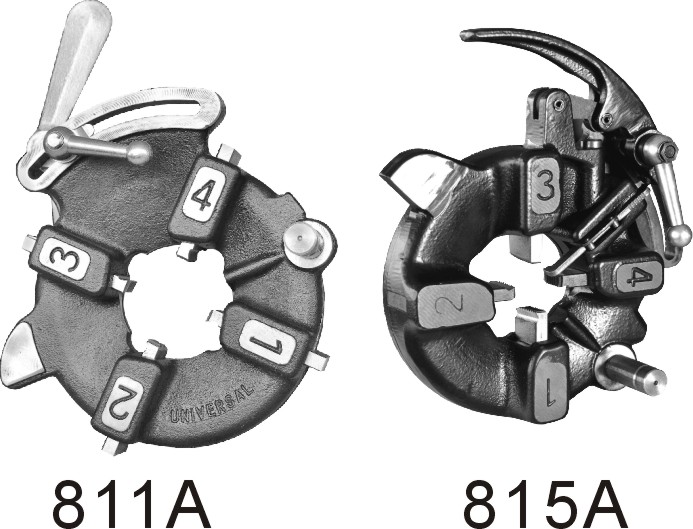

| Die head, Quick-open (standard) | ||
| Die head, Self-open (optional) | ||
| Die head, Bolt, Quick-open (optional) | ||
| Die head, Bolt, Self-open (optional) | ||
| Reamer | ||
| Cutter | ||
| Foot Pedal Switch (optional) | ||
| Nipple Chuck (optional) |
Packing
| Model No. | G.W. | N.W. | Packing |
| SQ50F | 96 kg | 80 kg | 100*53*48 cm |
