Product Application

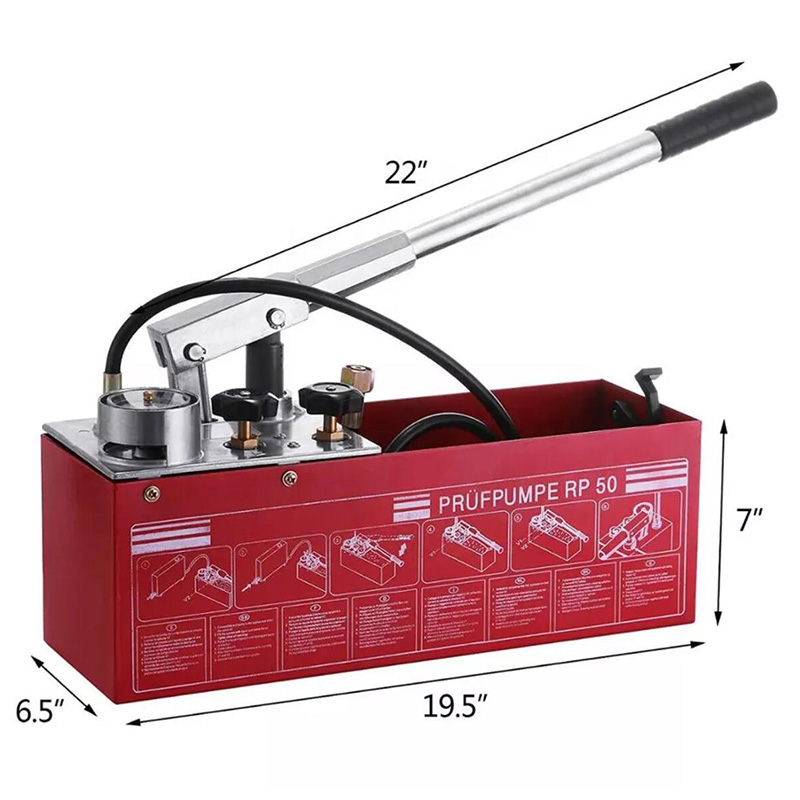

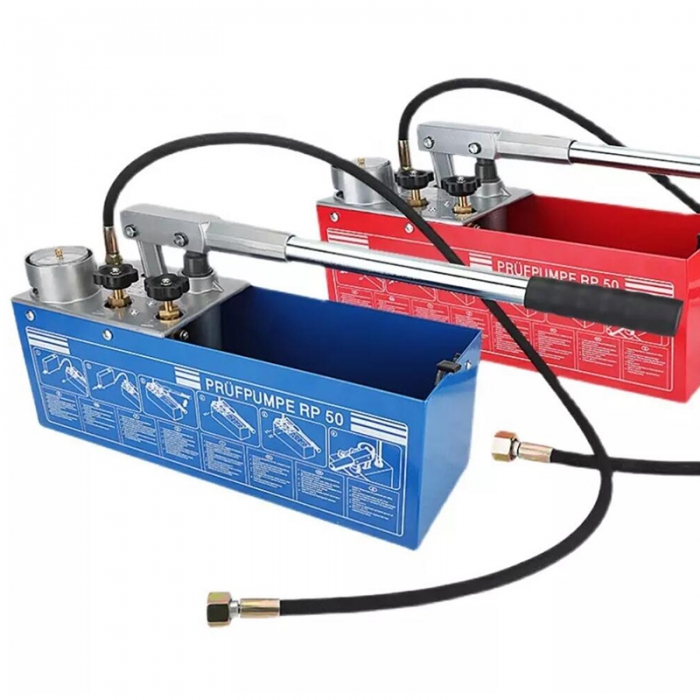

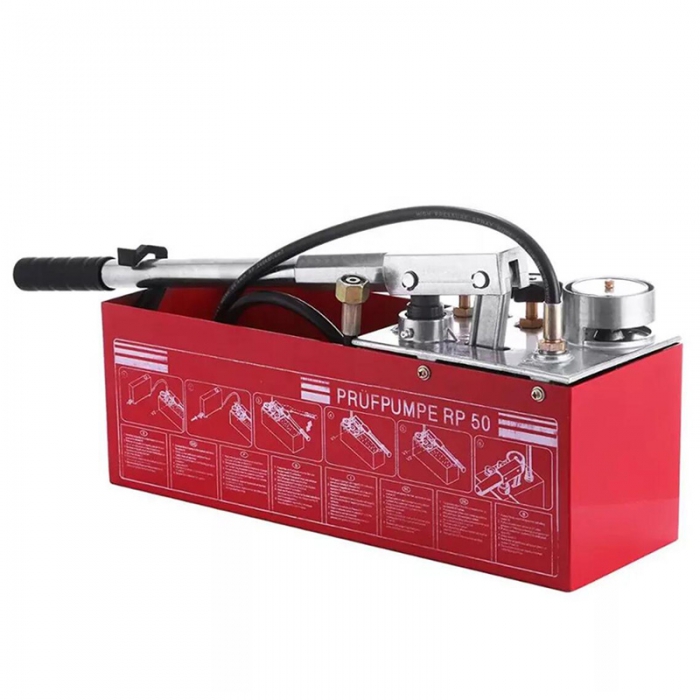

RP-50 Hydrostatic Hand Test Pump is a self-contained, portable, low volume, high pressure pump that is Hand Powered. It is designed to pressurize fluids, in an effort to determine leakage and identify loss in test environment, including: water mains, pressure vessels, irrigation systems, fire sprinklers, fire hoses, sewer lines, steam lines, and boilers.

Features

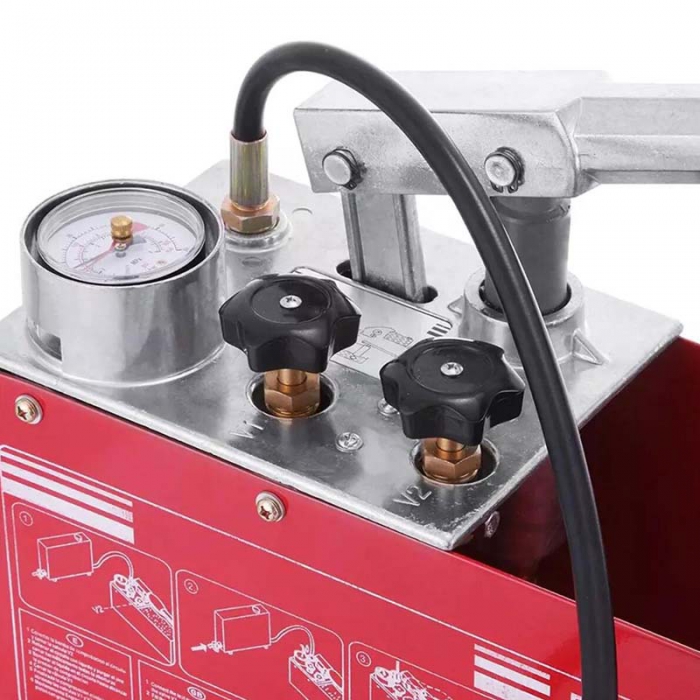

1.Reliable and precise measurement results : the double valve system of the RP50 allows the self-test of the pump as well as a precise fine adjustment of pressure .

2.Robust precision testing pump for pressure testing of water lines and containers up to 60bar with very high testing standards .

3.Pressure testing with water or oil of piping in residential and industrial construction,as well as for industrial containers .Expansion possible with an extra fine scaling pressure gauge (0.1bar)for testing up to 16bars .

4.A drag indicators displays the preset pressure so that a loss of pressure in the system can be detected easier.

5.Especially precise reading as needed: finely scaled (scaling 0.1bar) pressure gauge available separately .

6.Testing hose with steel mesh prevents reading mistakes , that can happen when the hose expands during operation .

Hydraulically Tests
•Sprinkler Systems
•Refrigeration Systems
•Oil Installations
•Compressed Air Systems
•Bore Pipe Installations

Specification
