| Name: | 12 in Pipe Roll Groover |
|---|---|
| Model: | YG12C |
| Weight: | 120kg |
| MOQ: | 1 SET |
| Capacity A: | 2”-12” Sch. 10 steel, stainless steel. |
| Capacity B: | 2”-6” Sch. 10/40 steel, stainless steel. |
| Condition: | New |
| Power: | 750w |
| Speed: | 24 RPM |
Product Description

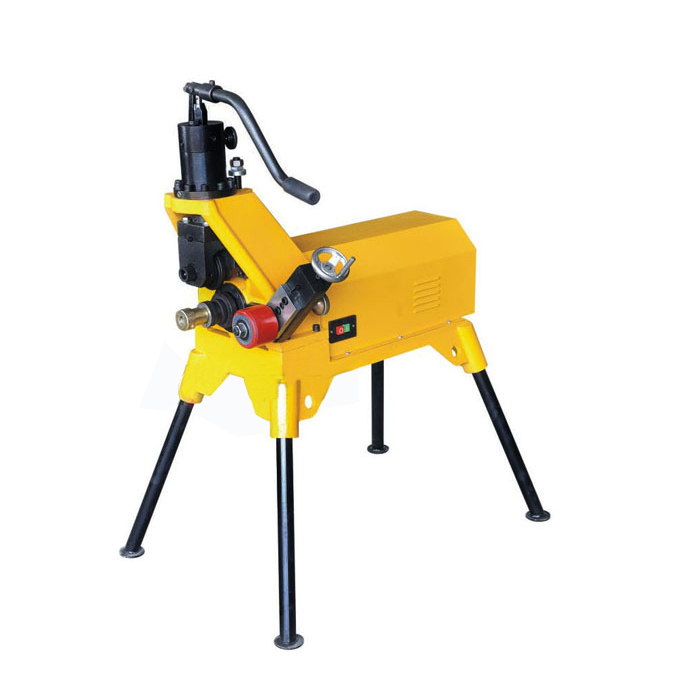

The Model YG12C hydraulic roll groover, powered by 750W induction motor, is capable of grooving up to 12”Sch 10 and 6” Sch 40 standard wall pipes.
“All in one”design of drive shaft for convenient replacement changing.
The YG12C comes with standard support legs, the unit can be set up quickly.
The induction motor ensures steady and quiet working.
Specifications
Motor: 750W induction, 50/60Hz
Switch: ON/OFF heavy duty switch.
Spindle Speed: 24 RPM
Capacity: 2”-12” Sch. 10 steel, stainless steel.
2”-6” Sch. 10/40 steel, stainless steel.
Weight:120 kg
Standard Equipment
Model YG12C grooving machine.
One 2”-6” Schedule 10/40 Roll Set for steel.
One 8”-12”Schedule 10 Roll Set for steel.

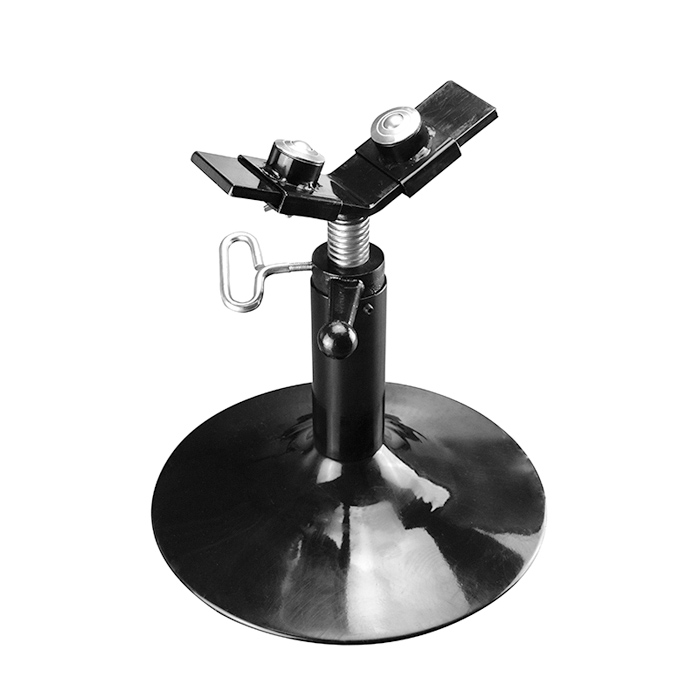

Model 1106 Pipe Support Stand.
Ordering Information
| Catalog No | Model No. | Description |
| YG12C | Hydraulic Roll Groover, 220V/50Hz | |
| YG12C | Hydraulic Roll Groover, 110V/60Hz |
Accessories
| Catalog No. | Model No. | Description |
| Roll Set for 2”-6” | ||
| -- | Roll Set for 8”-12” | |
| 1106 | Pipe support stand |
