Featuring

1.Bend large diameter into full circle or arc easily .

These two model are very suitable for steel pipe of greenhouse bending.

It can bend SS thick pipe ,thick square pipe and soft steel pipe .

Adjust shafts by hand for two main shafts and one driven shaft .

2.If you want to bend pipes into a circular or arc shape ,the diameter of the circle or

arc should be more than twenty times of the pipe diameter .

We can supply bending dies in other specifications according to your requirements.

3.Dies are casted with special steel ,very long usage life.

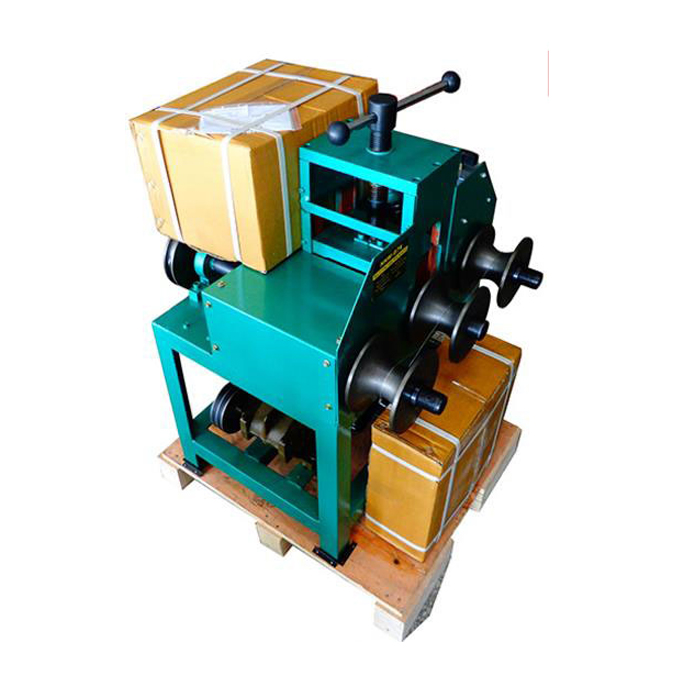

We will put machine and dies into one plywood case .

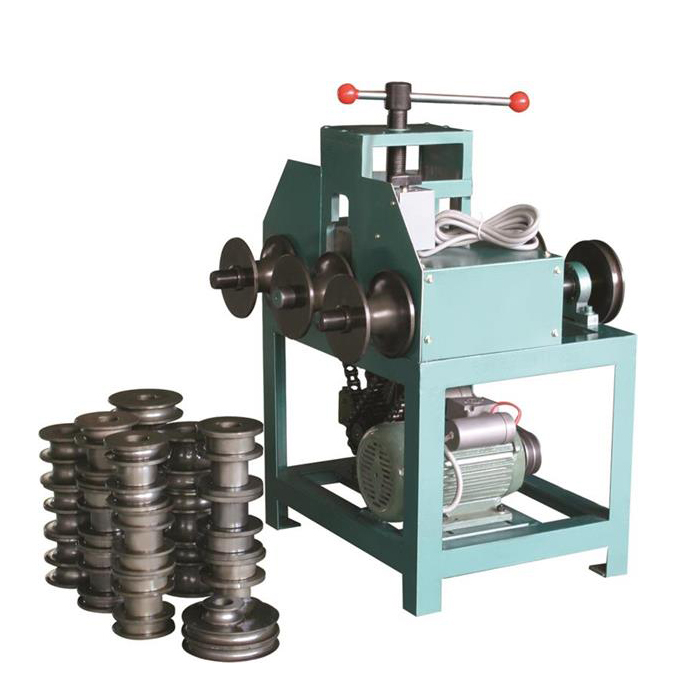

Square dies and round dies are available.

Specifications

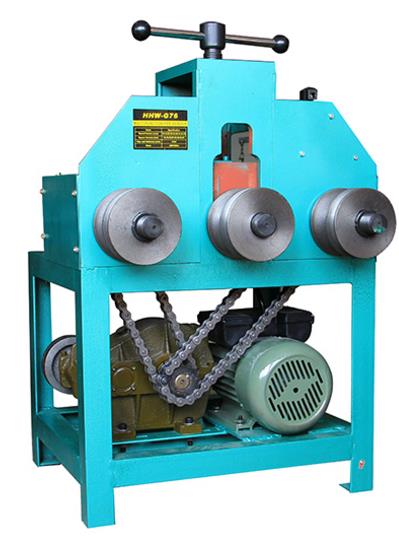

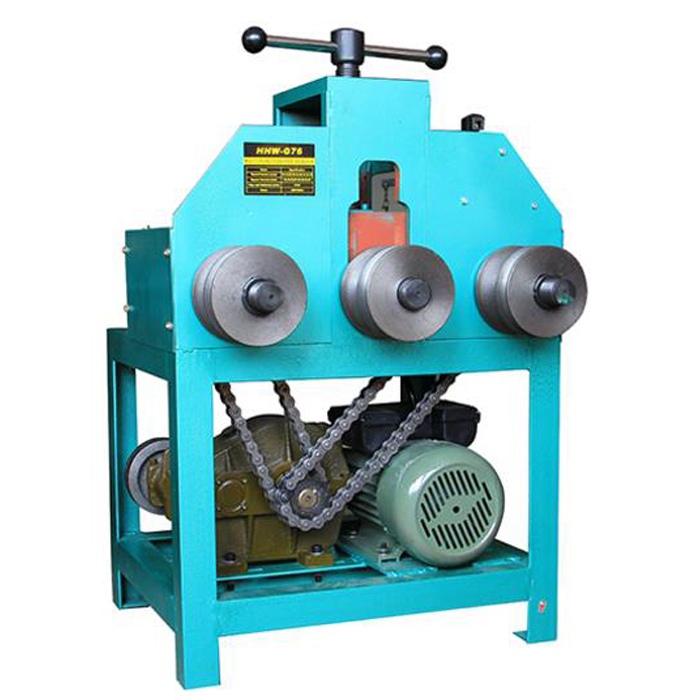

Model:HHW-G76

Pipe wall thickness :0.5-2mm

Standard rounddies:16,19,22,25,32,38,51,63,76mm

Standard squaredies:16,19,22,25,32,38,40,50mm

Voltage;220v/240v/380v 50Hz

Speed:1400RPM

Motor:1500W

Packing
