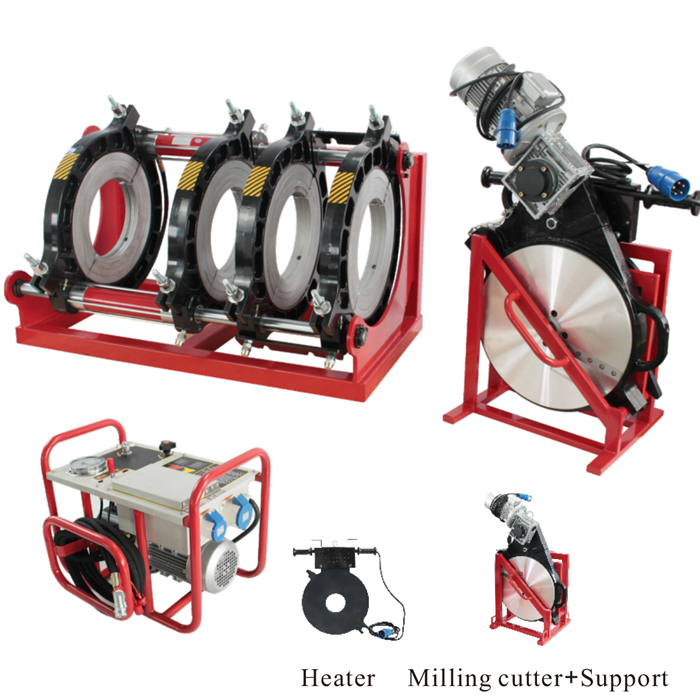

  • 500mm Hydraulic Butt Fusion Welding Cutter Machine
  • 500mm Hydraulic Butt Fusion Welding Cutter Machine
Name:500mm Hydraulic Butt Fusion Welding Cutter Machine
Model:HDC500
Type:Hydraulic
Range:280-500mm
Unit price:negotiable
Net weight:368kg
Gross weight:460kg
Total volume:1.8cbm

Product Description


Performance characteristic

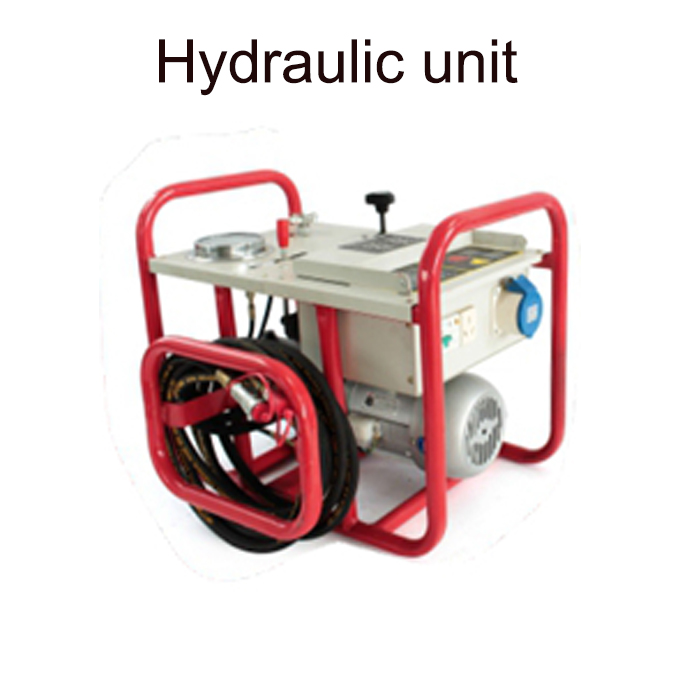

◆Electric Unit and hydraulic unit integrated design, easy to operate;

◆Use explosion-proof industrial socket, safer operation;

◆5cm aluminum clamps, more stable and durable;

◆Independent temperature control system, temperature control more stable, Dakin teflon coating non-stick tube;

◆Milling cutter with gear transmission, cutting and milling more stable;

◆Double channel timer is used to record heat absorption and cooling time, which is convenient to use;

◆High precision shock-proof pressure gauge, low temperature resistance, more accurate pressure reading.


SPECIFICATIONS FOR HDC450 HDPE BUTT FUSION WELDING MACHINE

Model

HDC500

Welding Range

 Dn280.Dn315,Dn355,Dn400,Dn450,Dn500

Temperature Range

0℃~300℃

Temperature variable

±3℃

Total power consumption

9.4KW/380V

Ambient temperature

-5~+45℃

Application

PE PP PB PVDF

Max.working pressure

6.3Mpa
