Efficient 3-speed transmission speeds up your work.

100A Pipe Threading Machines Pipe Threading Machines  Code 35A570 35A576 35A578 35A580 35A599 35A5G4 35A602 35A5H0 Voltage 220V 110/220V 60Hz 110V 220V 120V 230V 110V 230V Dies type  BSPT  BSPT BSPT  NPT  NPT  BSPT + Foot Switch BSPT + Foot Switch NPT  + Foot Switch 100A

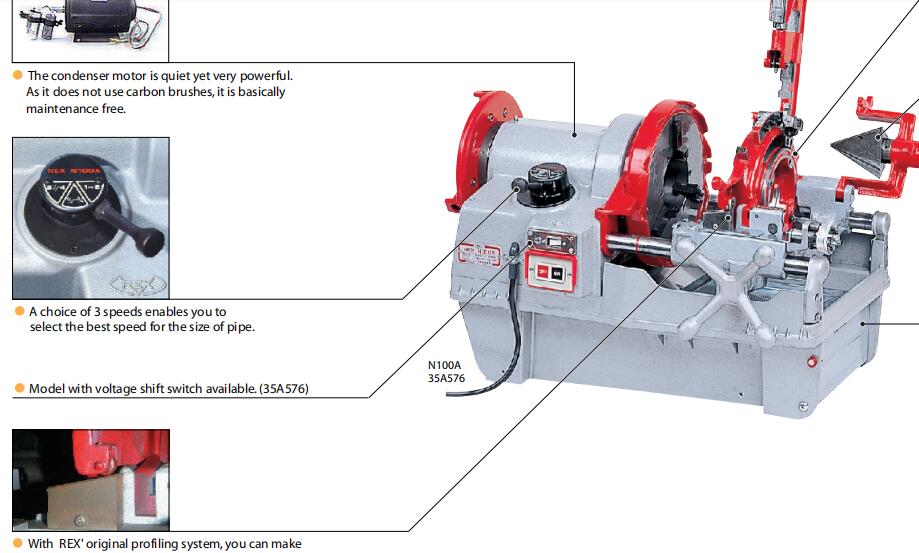

 The condenser motor is quiet yet very powerful.   As it does not use carbon brushes, it is basically   maintenance free.

Less than 100 sec to make a perfect 4" pipe taper thread. Less than 20 sec for a 1" pipe taper thread.

Uni-auto die head for 1/2 - 2" pipe. Dies are compatible with P50A/S80A manual die heads and P50AV/S80AV Uni-auto die heads.

Profiling die head for 21/2 - 4" pipe. REX original profiling system enables precise, straight tapers, with 20 mm dies  performing at higher speed and requiring less power consumption.

Quick, adaptable cutter. Quiet, maintenance-free condenser motor.

Built-in tool box is convenient for on-site work.

Large-capacity scrap catcher.

Threading size, thread length, and microfine adjustment of thread diameter can all be adjusted easily.

Compact and lightweight for its class (123kg), it can be set up by just two people.

NV-auto die head can be mounted as an option
