18 INCH PORTABLE PIPE CUTTER Manual

FEATURES

-Designed for rapid cutting of 14'' through 18'' steel pipe,heavy-wall steel pipe and cast-iron pipe.

-The cutters operate with minimal cutter rotation(90-110 degree) as necessary for tight quarters.

-During cutting operation,there is no sparks,serving jobs with such special requiremnts.

-Portable and light weight,easy for transportaion.

Description
The low profile design of H18S cutter needs only 5 inch (127 mm) clearance for up to 18 inch pipe diameter.
Safe, clean, straight cuts are easy with these manual-operated cutters.
Cold cut large diameter steel, most stainless steel pipe in close quarters.

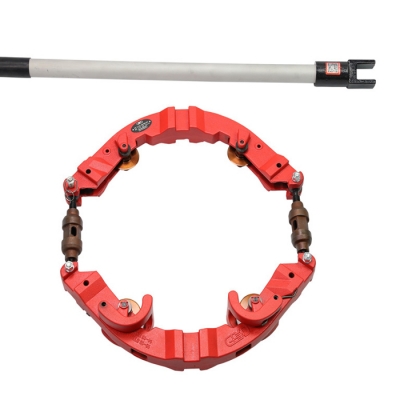

H18S cutters are supplied with a slip-on handle that is used to turn and tighten the cutter.
With good leverage from the tool’s long handle, pipe snaps off squarely before the cutter wheels penetrate halfway through the pipe.

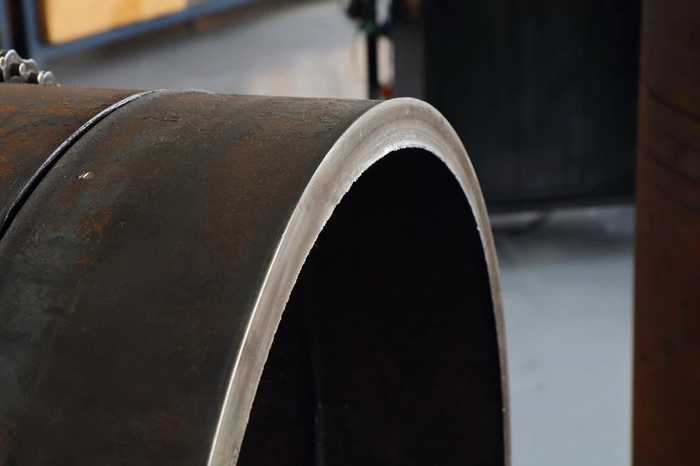

Provides a square cut and can be used in close quarters anywhere – in the ditch, underwater, in noise-free zones,over head, in racks of pipes, etc.

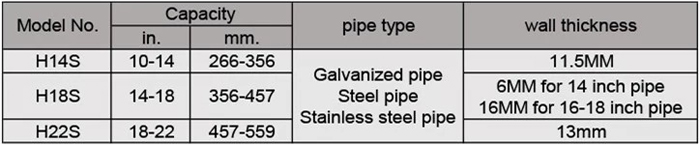

Ordering Information
Catalog No. Model No. H18S
Description For Steel & Stainless Steel & Galvanized pipes
Pipe Capacity in 14-18
Pipe Capacity mm. 356-457mm

Max wall thickness:  6mm for 14 inch pipes

                                    16mm for 16-18 inch pipes
