| Name: | 40 bar Pressure Water Test Pump |
|---|---|
| Model: | SB4.0 |
| Flow: | 30ML |
| Tank capacity: | 10L |
| Pressure: | 40 BAR |
| Type: | Water Piston Pump |
| Condition: | New |
| Fluid: | water or oil |
| Net Weight: | 4.5kgs |
| Unit Price: | Email Us |
| Logo: | Accept customized |
| OEM: | Acceptable |

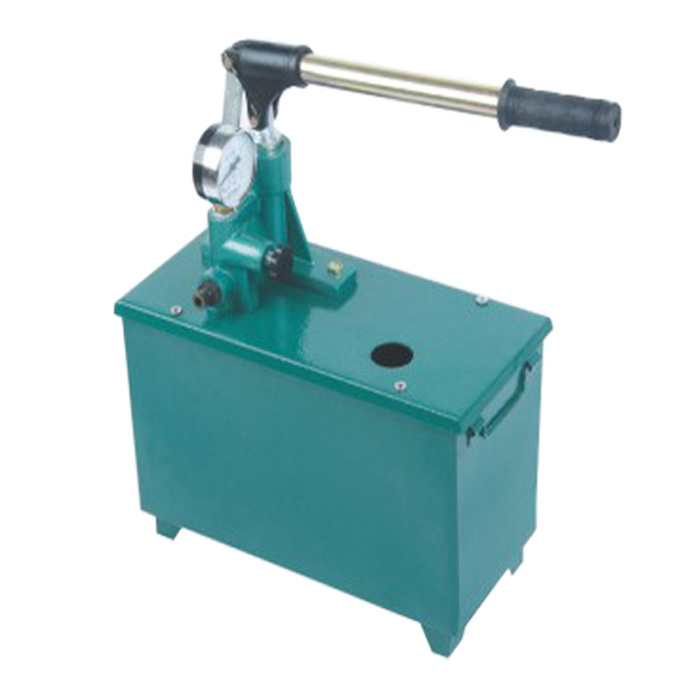

SB4.0 Hydrostatic Hand Test Pump is a self-contained, portable, low volume, high pressure pump that is Hand Powered. It is designed to pressurize fluids, in an effort to determine leakage and identify loss in test environment, including: water mains, pressure vessels, irrigation systems, fire sprinklers, fire hoses, sewer lines, steam lines, and boilers.
Hydraulically Tests
•Sprinkler Systems
•Refrigeration Systems
•Oil Installations
•Compressed Air Systems
•Bore Pipe Installations
Specification
Working Pressure | suction per stroke | Capacity of reservoir | Hose connection | Weight (inc.hose) | Dimension (mm) |
40 bar /580psi | 30cc/30ml | 10 litres | 1/2" BSP | 5.0/4.5 KG | 375*270*180 |
