Product Description

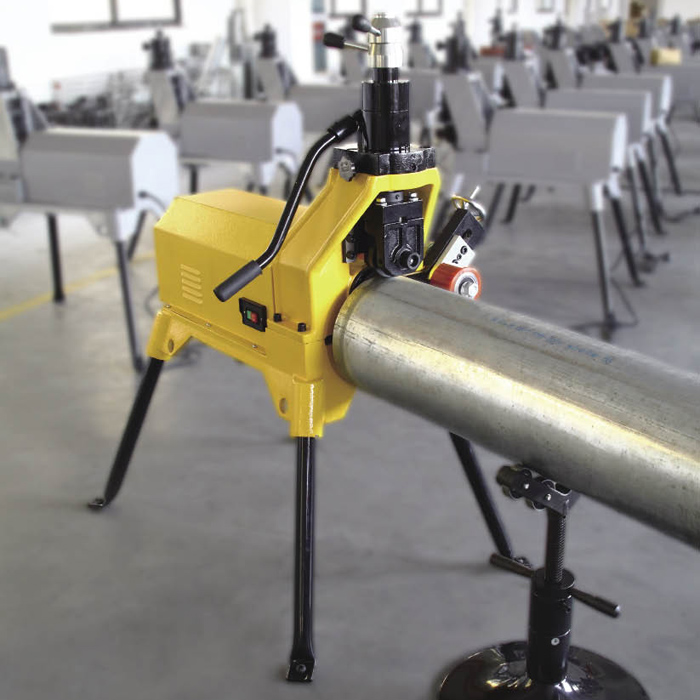

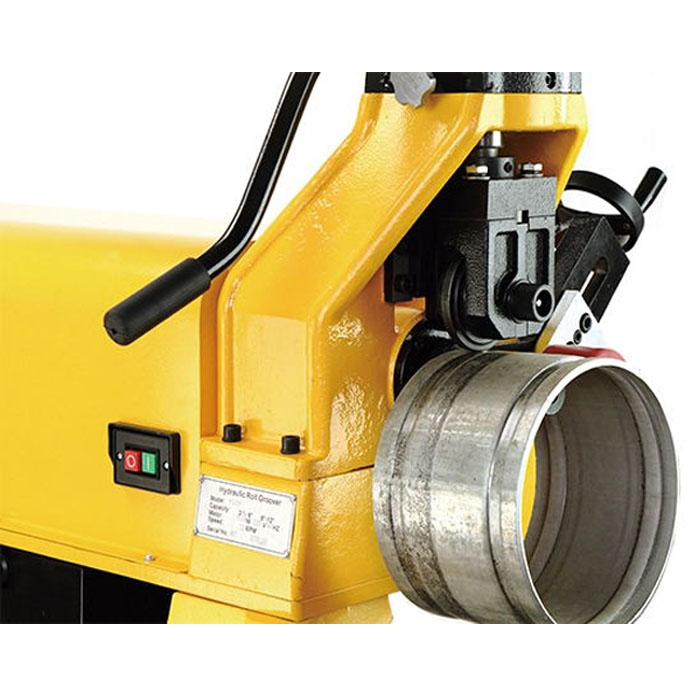

The YG12E Heavy Duty Roll Groover forms rolled grooves in steel, stainless steel tubing. The grooves are formed by the hydraulic feeding of a grooving roll into the pipe which is supported by a drive roll.

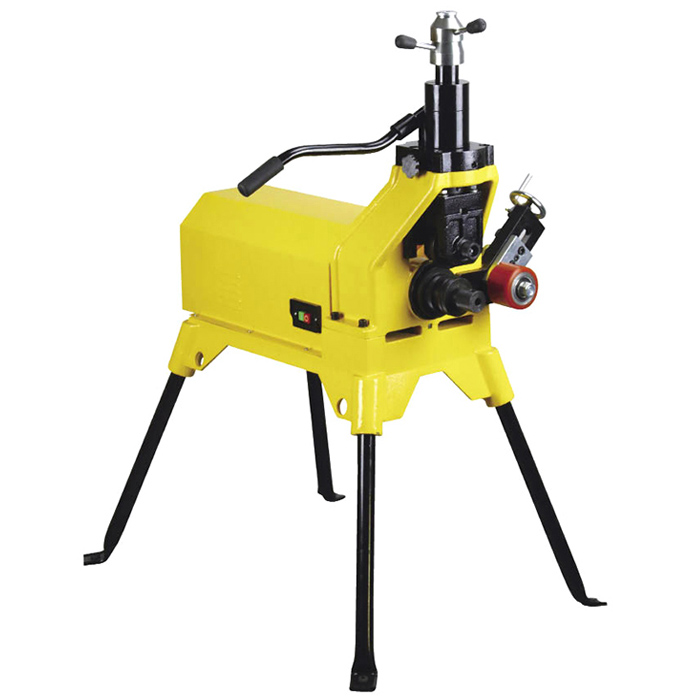

The Model YG12E hydraulic roll groover, powered by 750W induction motor, is capable of grooving up to 12” Sch 10 and 6” Sch 40 standard wall pipes. “Separate knurling roller” design of drive shaft for convenient replacement changing.
The YG12E comes with standard support legs, the unit can be set up quickly.
The induction motor ensures steady and quiet working.

Technical Specifications
Motor: 750W induction, 50/60Hz
Switch: ON/OFF heavy duty switch.
Spindle Speed: 24 RPM
Capacity: 2”-12” Sch. 10 steel, stainless steel.
2”-6” Sch. 10/ 40 steel, stainless steel.
N.W: 120 kg

Standard Equipment
Model YG12E grooving machine.
One 2”-6” Schedule 10/40 Roll Set for steel.
One 8”-12” Schedule 10 Roll Set for steel.

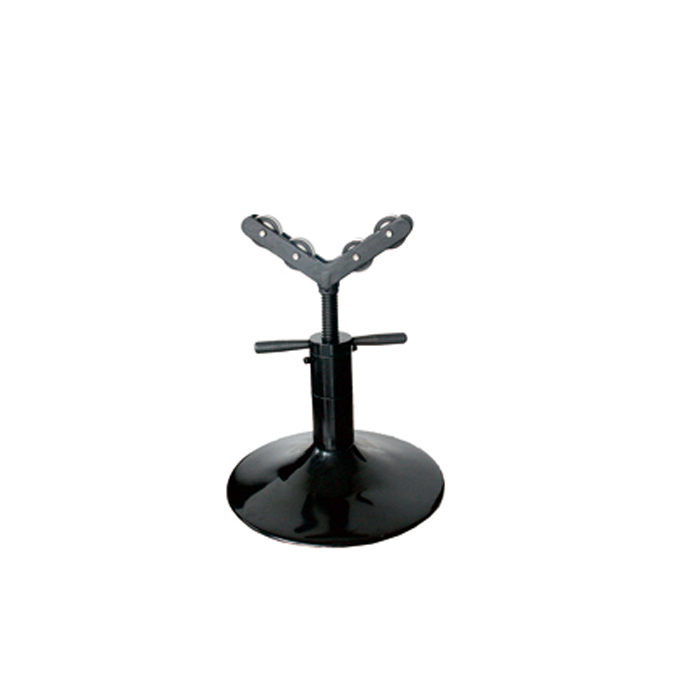

Model 1106 Pipe Support Stand.
