| Name: | Electric Portable Pipe Threader |
|---|---|
| Model: | SQ30-2B |
| Capacity: | 2 inch |
| Motor: | 1200~1350W Universal 110V or 220v, 50~60 Hz. |
| Spindle Speed: | 28 RPM for threading, 51 RPM for reverse. (No load) |
| Gear Housing: | Aluminum |
| Die Heads Included: | ½”, ¾”, 1”, 1 ¼”, 1 ½”, 2” (Type 11R) |
| Screw Threads: | NPT / BPST |
| Gross Weight: | 25kg |
Featuring

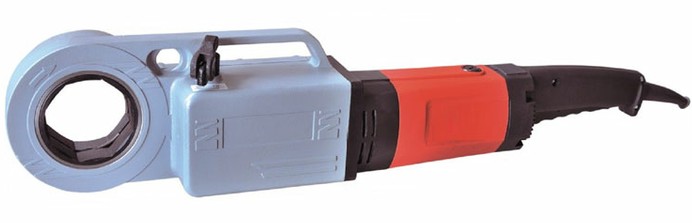

Hand-held, powerful, portable power drive, equipping reversible 110V or 220V universal motor.
Designed to work with 11R die heads.
Dies could be interechangeable with RIDGID.
Heavy-duty paddle-type switch with safety lock off switch.
Durable heavy-duty fiberglass reinforced plastic Body & Handle.
Mechanical transmission reversing design, to prevent motor from damage.
Ideal for on-site applications such as gas line pipe installation.
Certificates: CE & CSA Approved.
Specifications
Capacity: ½”-2” (DN 15mm-50mm) pipes.
Motor: 1200~1350W Universal 110V or 220v, 50~60 Hz.
Spindle Speed: 28 RPM for threading, 51 RPM for reverse. (No load)
Gear Housing: Aluminum
Die Heads Included: ½”, ¾”, 1”, 1 ¼”, 1 ½”, 2” (Type 11R)
Screw Threads: NPT / BPST
Dies Material: Alloy standard, (HSS optional)
