  • Dn250 Hydraulic BUtt Fusion Welding Machine
  • Dn250 Hydraulic BUtt Fusion Welding Machine
  • Dn250 Hydraulic BUtt Fusion Welding Machine
  • Dn250 Hydraulic BUtt Fusion Welding Machine

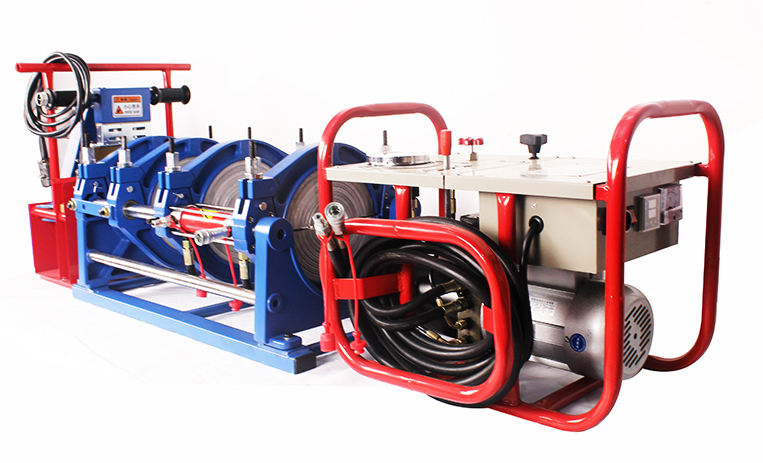

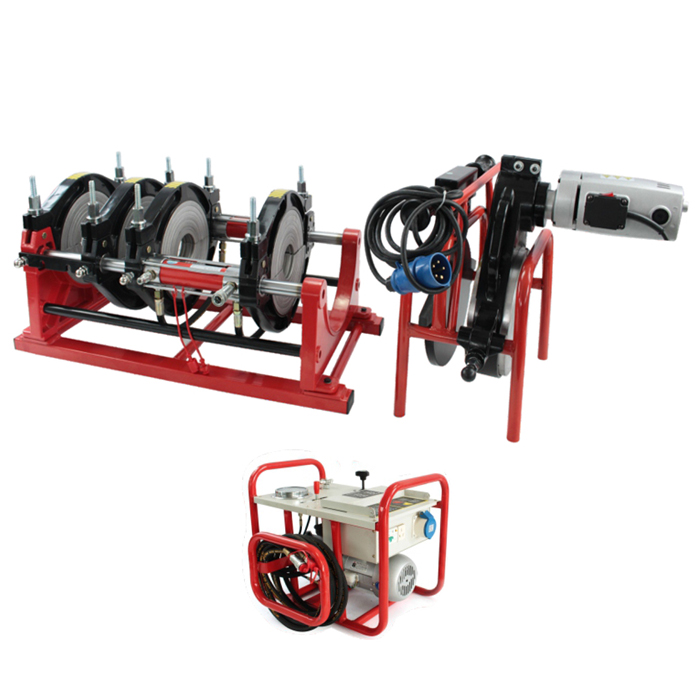

Name:Dn250 Hydraulic BUtt Fusion Welding Machine
Model:HDC250
Type:hydraulic electric
Range:63-250
Unit price:negotiable
Net weight:119kg
Gross weight:145kg
Total volume:0.52cbm

Product Description


Uses and Features

◆Use explosion-proof industrial socket, safer operation;

◆4cm aluminum clamps, more stable and durable;

◆Independent temperature control system, temperature control more stable, Dakin teflon coating non-stick tube;

◆Using three-stage power motor, cutting and milling more stable;

◆Independent timer portable disassembly, record the heating and cooling time, more convenient to use;

◆High precision shock-proof pressure gauge, low temperature resistance, more accurate pressure reading.


SPECIFICATIONS FOR HDC250 HDPE BUTT FUSION WELDING MACHINE

Model

HDC250

Welding Range

Dn90,Dn110,Dn125,Dn140,Dn160 ,Dn180,Dn200,Dn225,Dn250

Temperature Range

0℃~300℃

Temperature variable

±5℃

Power of Heating Plate

2.5KW/220V

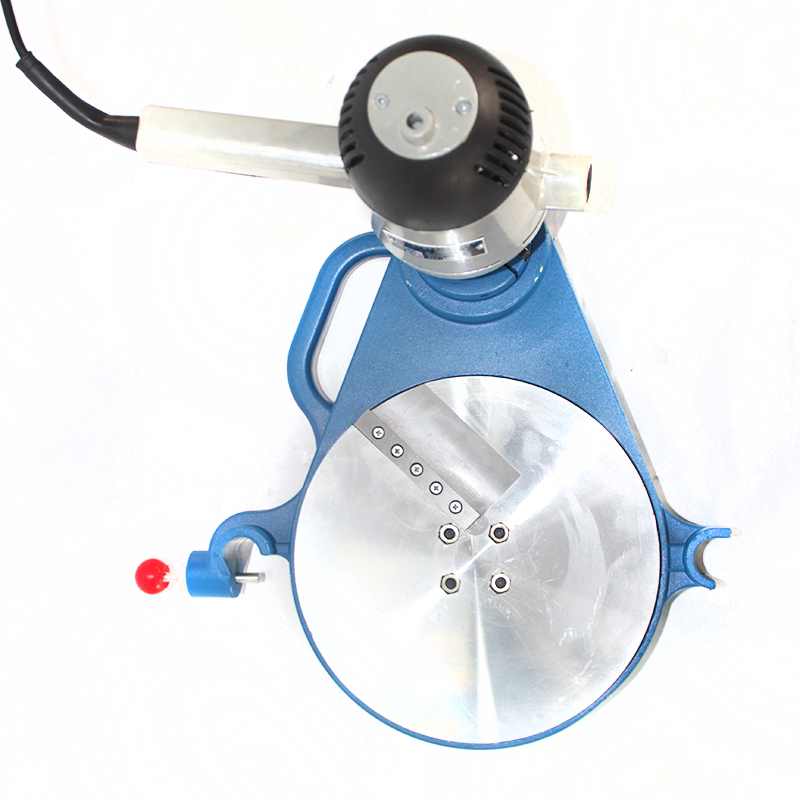

Power of Planning Tool

1.2KW/220V

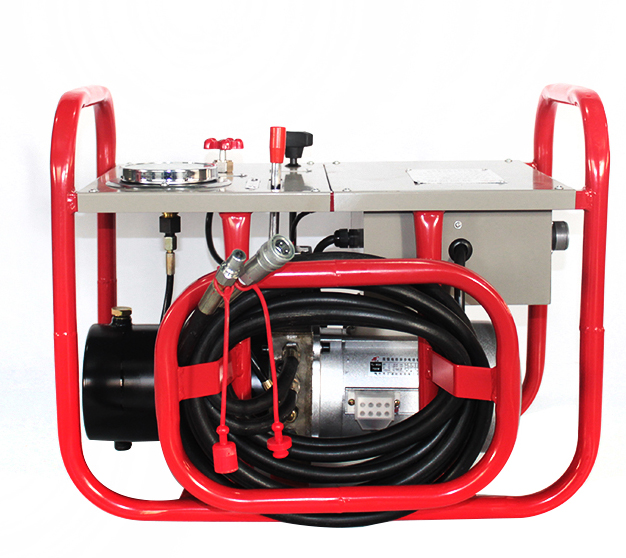

Hydraulic station power

0.75 KW

Power Supply

220V, 50Hz

Max.working pressure

6.3Mpa

NET WEIGHT : 149KG

Hits: 【Print】
Pre:160mm 200mm Hydraulic butt fusion welding machine     Next:Dn315 Hydraulic butt fusion welding machine
