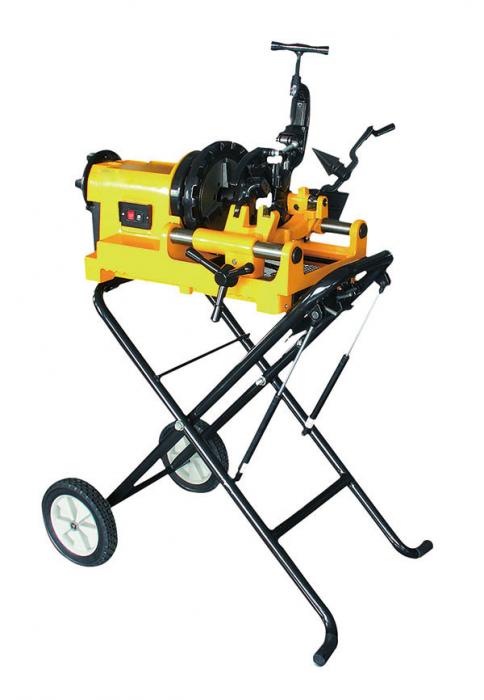

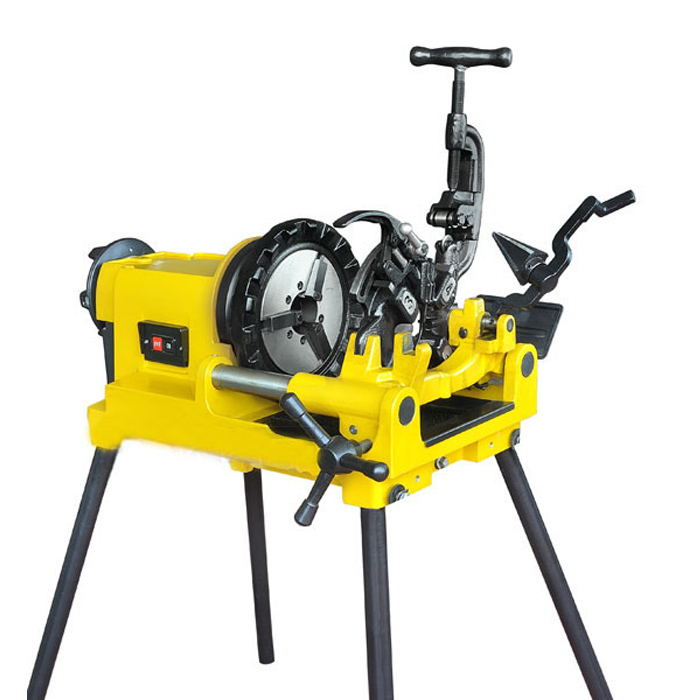

Name:Automatic Pipe Threader 2 inch
Model:SQ50E
Rated Voltage:110V/220V 50/60HZ
Capacity:2 inch
Rated Input Power:1500W Universal
Die head:self-opening die head 1/2‘-2“
Spindle Speed:38 RPM
Net Weight:75kg
Gross Weight:90kg
Packing Size:

Product Description


Features

Light weight, portable design.

Self-Contained Oil System with adjust-able flow control.

Approved by CE standards.


Specifications

Motor: 1500W universal, 50/60Hz

Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch are optional

Spindle Speed: 38 RPM.

Front Chuck: Hammer type with replaceable rocker action jaw inserts.

Rear Centering Device: Cam action.

Oiling System: Through die head, with intergral oil reservoir.

Pump: Self-priming constant flow, gerotor pump.


Standard Equipment

Model SQ50E Threading Machine.

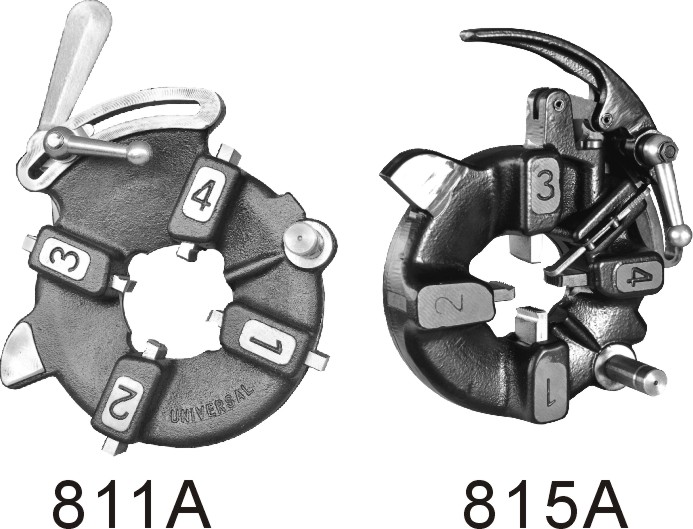

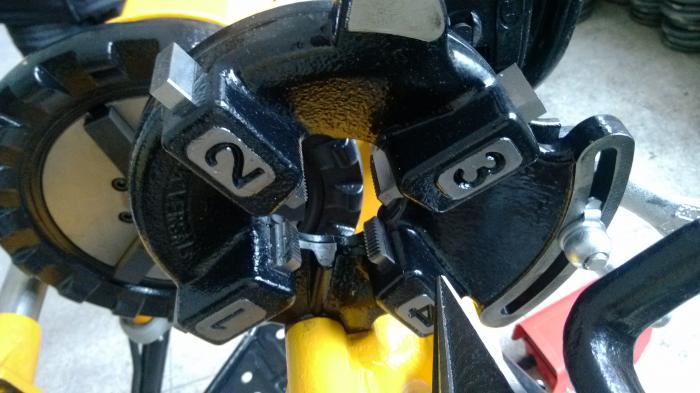

Self-open die head.

½”-¾” universal HSS dies set.

1”-2” universal HSS dies set.

Cutter: Capacity: 1/8”-2”(3mm-50mm) pipe

Reamer: Positive-locking, 5-flute cone, righthand 1/8”-2”(3mm-50mm).
