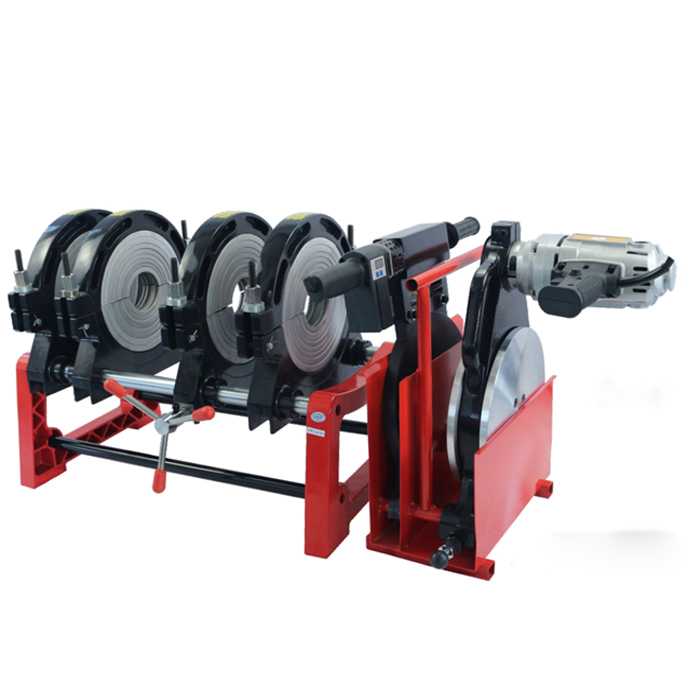

Name:Dn250 Manual Butt Fusion Welder
Model:HD250-4C
Range:Dn63-250
Power:3.5KW
Unit price:negotiable
Net weight:68KG
Gross weight:76KG
time temperature:less 20 min

Product Description


Performance features:
●Applicable to 90,110,125,140,160,180,200,225,250 mm PE, HDPE, PP plastic pipe hot melt welded connection.

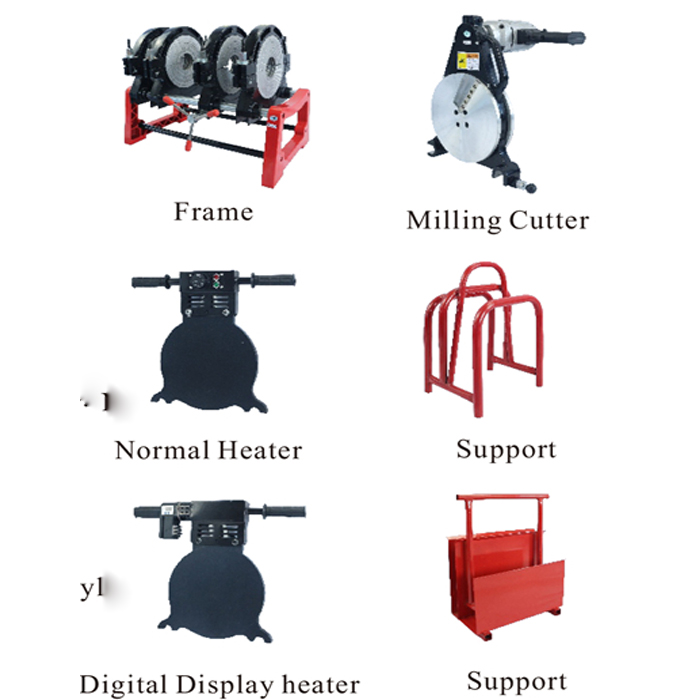

●Is composed of three parts of the fixture rack, heating plate, milling machine (its basket rack).
●Reasonable engineering and mechanical design for welding work more convenient and flexible.
●Card sets gland unilateral fixed clamshell structure the the short welding process more effective.
●locking mechanism to avoid welding by external influences.
●Provide welding pressure from the crank drive mechanical transmission smooth, easy operation.

●The motor-driven cutting milling cutter.


SPECIFICATIONS FOR HD250-2C HDPE BUTT FUSION WELDING MACHINE

Model

HD250-4C

Welding Range

Dn90,Dn110,Dn125,Dn140,Dn160,Dn180.Dn200,Dn225,Dn250

Application

PE PP PPR PVDF

Temperature Range

0℃~300℃

Temperature variable

±3℃

Power of Heating Plate

2.5kw/220v

Power of Planning Tool

1kw/220v

Power Supply

220V, 50Hz

Max.working pressure

6.3Mpa
