Name:6 in Pipe Roll Groover
Model:YG6C
Parts:pipe stand
Weight:60kg
Power Supply:550w
Speed:24 RPM
Condition:New
Capacity:1 1/4"-6" Sch 10, 1 1/4"-3" Sch 40 pipes.
MOQ:1 SET

Product Description


Product Description

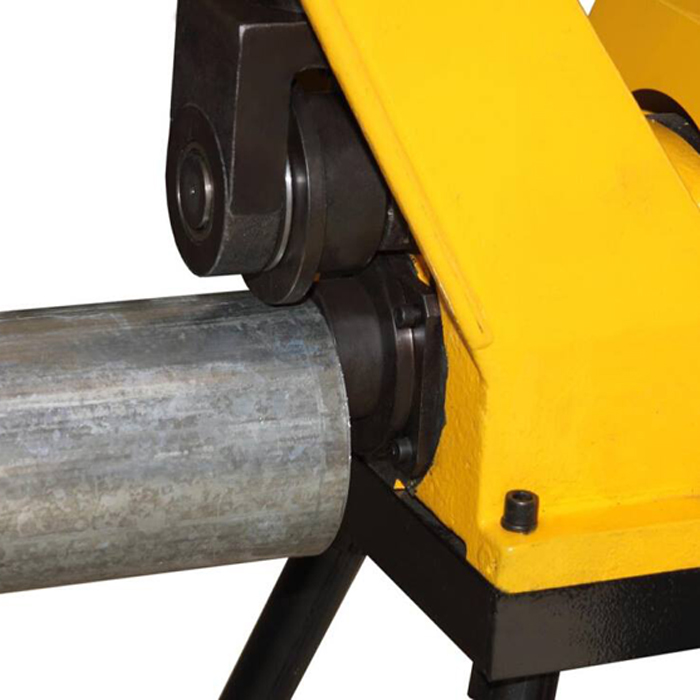

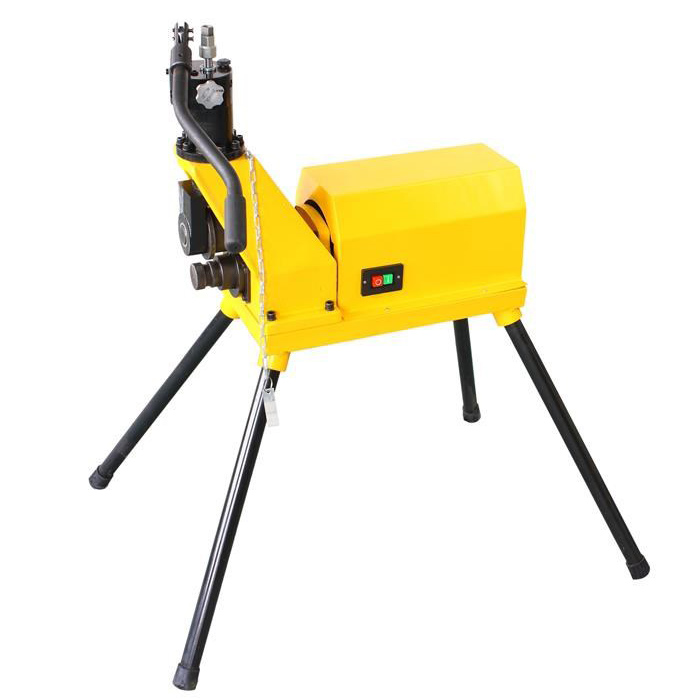

The Model YG6C hydraulic roll groover, powered by 550W indcution motor, is capable of grooving up to 6”Sch 10 and 3” Sch 40 standard wall pipes.

“All in one”design of drive shaft for convenient replacement changing.

The YG6C comes with standard support legs, the unit can be set up quickly.

The induction motor ensures steady and quiet working.


Specifications


Motor: 550W induction, 50/60Hz

Switch: ON/OFF heavy duty switch.

Spindle Speed: 24 RPM

Capacity: 1¼”-6” Sch. 10 steel, stainless steel.

                  1¼”-3” Sch. 40 steel, stainless steel.

Weight: 80 kg


Standard Equipment

Model YG6C grooving machine.

One 1¼”-1½” Schedule 10/40 Roll Set for steel.

One 2”-6” Schedule 10 (3” Schedule 40) Roll Set for steel.

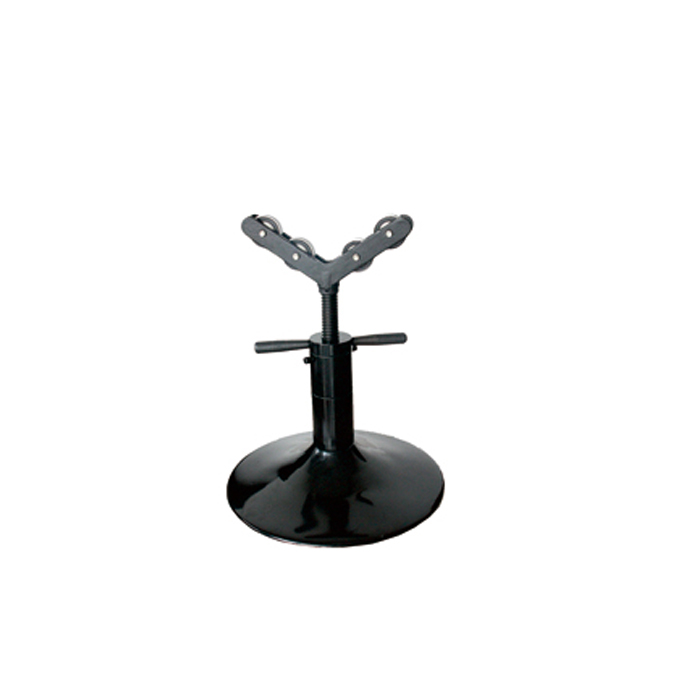

Model 1106 Pipe Support Stand.


Ordering Information


Catalog NoModel No.Description

YG6CHydraulic Roll Groover, 220V/50Hz

YG6CHydraulic Roll Groover, 110V/60Hz



Accessories



Catalog No.Model No.Description


Roll Set for 1¼”-1½”

--Roll Set for 2”-6”

1106Pipe support stand
