| Name: | 918 Hydraulic Roll Grooving Machine |
|---|---|
| Model: | YG12A |
| Reference: | RIDGID 918 |
| Capacity: | 12 inch |
| Type: | Hydraulic |
| Power: | 300 power drive |
| MOQ: | 1 set |
| grooving pipe A: | 2”-8” Sch. 40 steel, stainless steel. |
| grooving pipe B: | 2”-12” Sch. 10 steel, stainless steel. |
Product Description

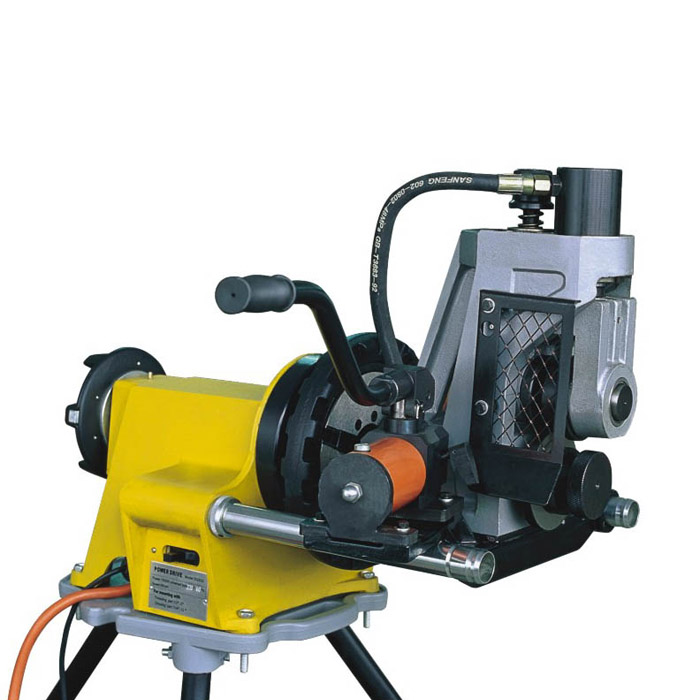

The Model YG12A Hydraulic Roll Groover features a powerful 15-ton hydraulic ram in a compact, easy to transport unit.

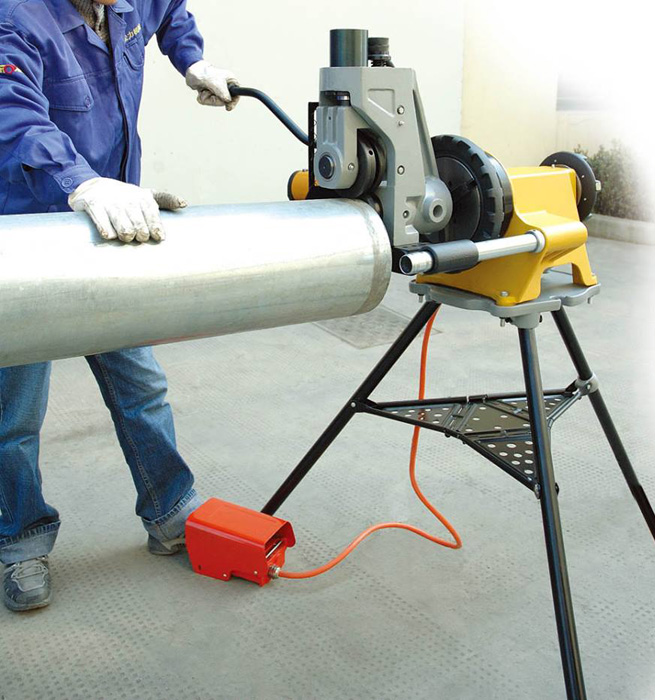

With one man set-up operation, the YG12A is the ideal groover for job site requirements.
The YG12A mounts quicky to SQ50D power drive.
Designed to provide maximum efficiency, the YG12A is capable of grooving up to 12” Schedule 10 and 8” Schedule 40 standard wall pipes.
Roll set change out is accomplished in seconds.
Specifications
Capacity: 2”-12” Sch. 10 steel, stainless steel.
2”-8” Sch. 40 steel, stainless steel.
Weight: 53 kg
One 2”-6” Schedule 10/40 Roll Set for steel.
One 8”-12” Schedule 10 (8” Schedule 40) Roll Set for steel.
