  • Rolling electric pipe bending machine
  • Rolling electric pipe bending machine

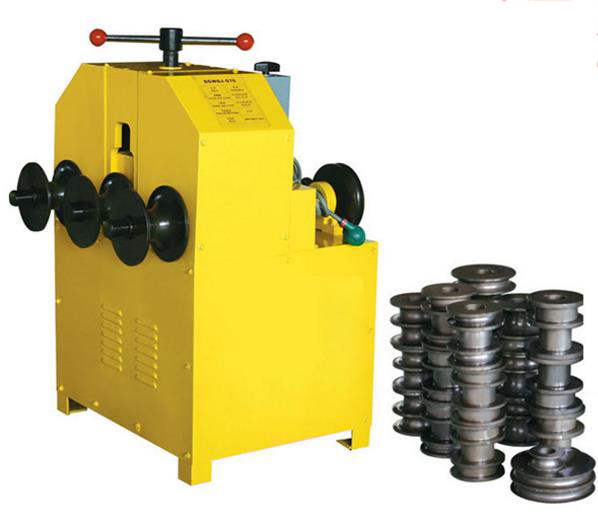

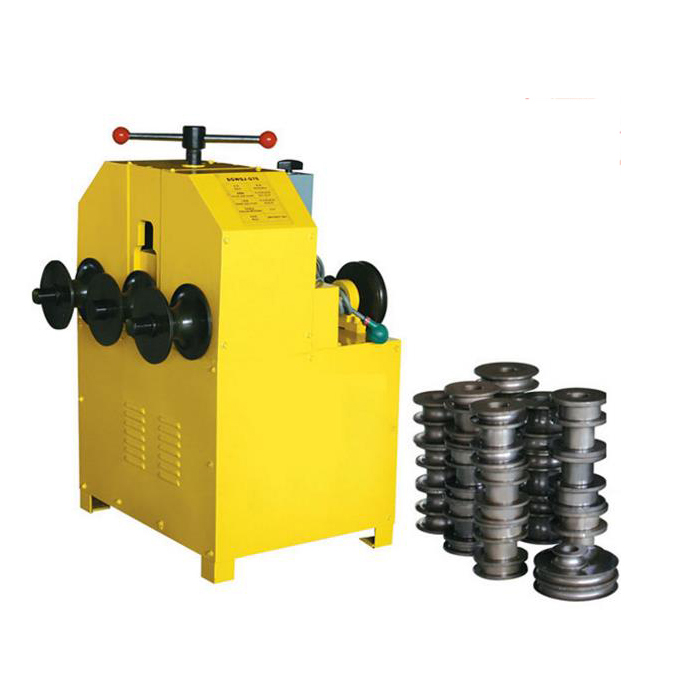

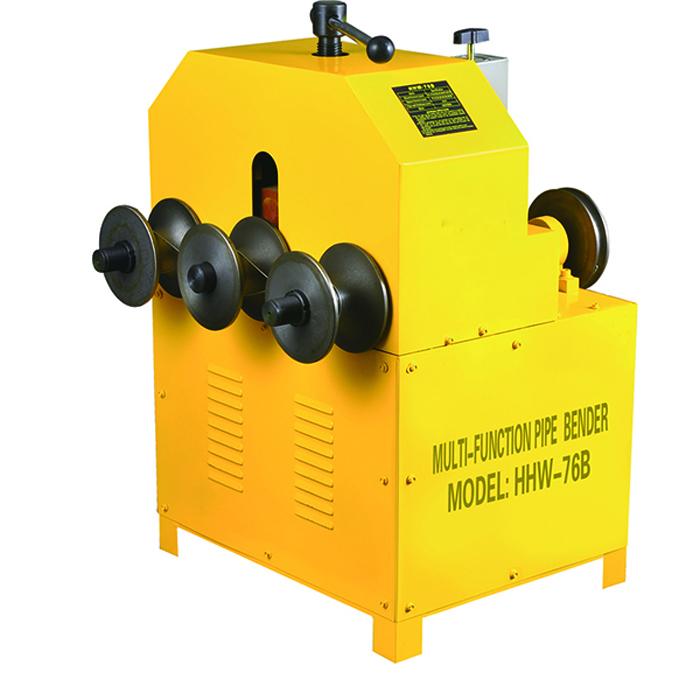

Name:Rolling electric pipe bending machine
Model:HHW76B
Capacity:76mm
Type:Multi-function
Stainless steel:available
MOQ:1 set
Net Weight:250KG
Unit Price:negotiable

Product Description


Featuring

1.Bend large diameter into full circle or arc easily .

These two model are very suitable for steel pipe of greenhouse bending.

It can bend SS thick pipe ,thick square pipe and soft steel pipe .

Adjust shafts by hand for two main shafts and one driven shaft .


2.If you want to bend pipes into a circular or arc shape ,the diameter of the circle or

arc should be more than twenty times of the pipe diameter .

We can supply bending dies in other specifications according to your requirements.


3.Dies are casted with special steel ,very long usage life.

We will put machine and dies into one plywood case .

Square dies and round dies are available.



Specifications

Model:HHW-76B

Pipe wall thickness :0.5-2mm


Standard round dies:16,19,22,25,32,38,51,63,76mm


Standard square dies:16,19,22,25,32,38,40,50m

Motor:1500W

Packing


ModelG.W.Packing size
HHW-76B260KG73*63*103CM
