Featuring

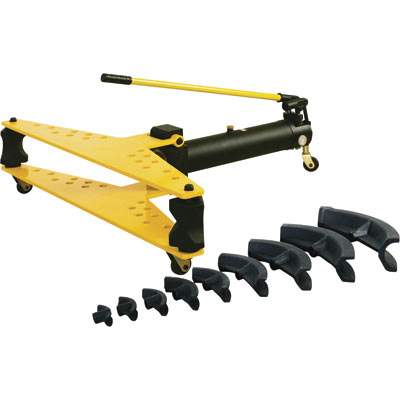

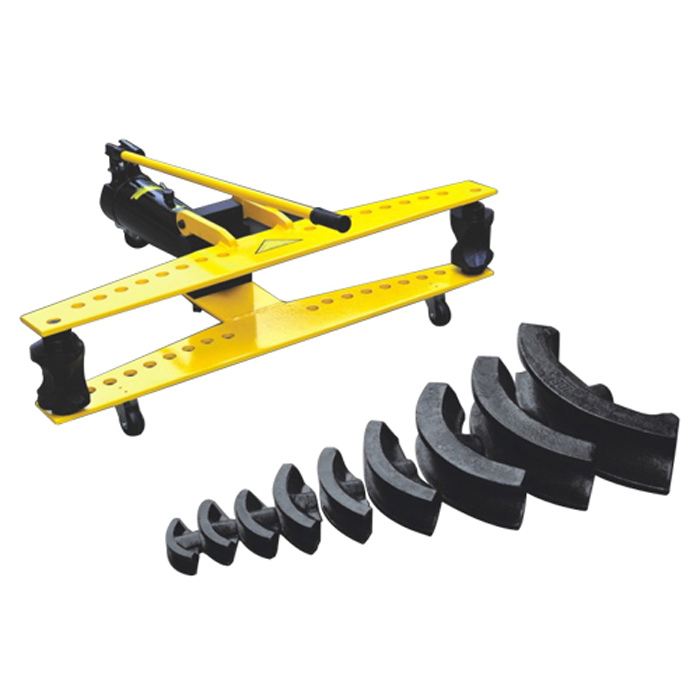

1. Hydraulic pipe bender provides easier bending than manual mechanical bender.
2. Bending range up to 4” , portable design for construction .
3. Cold bending pipes only in one turn .Up to 90 degree, hydraulic equipment makes more precise bending

4.Fast set up and disassembly ,convenient removing with bottom wheels.
5.Friendly use for European Environmental Standard with CE.

 Specifications
Model:SWG-4
Pipe wall thickness :2.75-4.5mm
Bending dies: 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3",4"

Bending angle : 180°-90°

Working Movement:420mm    Hydraulic Oil:N15

 Bends radius : 4D

Capacity:1/2"-4"

Weight: 190KGS

Tube External Diameter Series:21.3×2.75　26.7×2.75　33.5×3.25

Dia.（Ф） 42×3.25　48×3.5　60×3.5

75.5×3.75　88.5×4.0　108×4.5

 Shape dimensions: 122*48*29cm
