Featuring

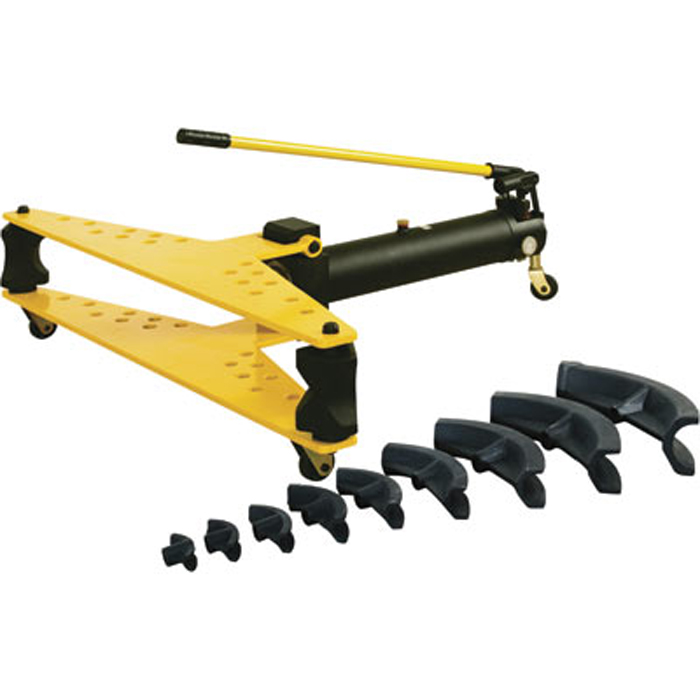

1. Hydraulic pipe bender provides easier bending than manual mechanical bender.
2. Bending range up to 3” , portable design for construction .
3. Cold bending pipes only in one turn .Up to 90 degree, hydraulic equipment makes more precise bending

4.Fast set up and disassembly ,convenient removing with bottom wheels.
5.Friendly use for European Environmental Standard with CE.

 Specifications
Model:SWG-3

Capacity:1/2"-3"
Pipe wall thickness :2.75-4mm
Bending dies: 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3"

 Pump: 59Mpa

Bending angle : 180°-90°

Bends radius : 4D

Working Movement:320mm

Weight: 130KGS Shape  Dimensions:96*42*28cm

Tube External Diameter Series :21.3×2.75　26.7×2.75　33.5×3.25

        42×3.25　48×3.5　60×3.5   75.5×3.75　88.5×4.0
