  • SCH10  Pipe Roll Groover 12in

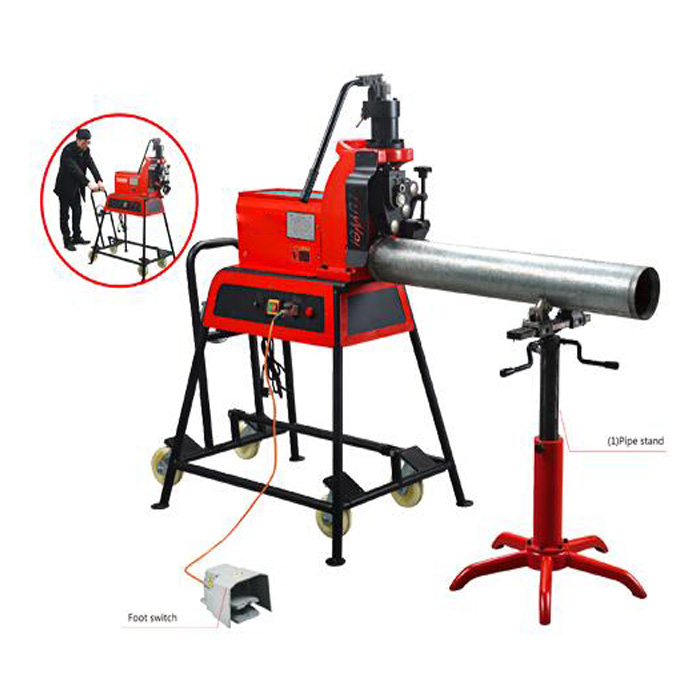

Name:SCH10 Pipe Roll Groover 12in
Model:TWG-VIIA
Capacity:1-12 inch
Weight:250kg
Type:Electric
Condition:New
Power:220v.115v
OEM:Accepot
MOQ:1 SET
Speed:36 rpm

Product Description


The new hydraulic pump system for quick feeding. Make the operation much more easily

Different sized pinch rollers combined in one part, no need to undo the pinch rollers when grooving different sized pipes. Just by rotate the pinch roller part user can achieve the shift between different sized pinch rollers.

Machine body equipped with quick lifting system, four wheels been controlled by one rod. It is very easy to move the machine



Capacity
1"-12"(∅33-∅325)SCH40 elbows and T-fitting

1"-12"(∅33-∅325)SCH150 SCH55 SCH10 SCH5 thin-wall steel pipe

Max. wall thickness:10mm
Output RPM:36rpm
G.W: 250kgs
Packaging size: 117x76x155(cm)



Power : 110v.220v.  50Hz,.60 Hz



Standard equipment

VIIA A.jpg

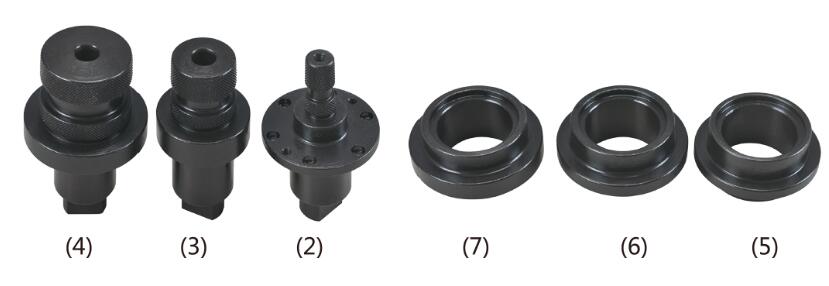

Optional Equipment for thin wall steel pipe SCH5  SCH5S SCH10 SCH10S

Knurl Wheel  33-48

Knurl Wheel  60-168

Knurl Wheel  219-325
