| Name: | 3 inch Electric pipe cutting threading machine |
|---|---|
| Model: | SQ80D1 |
| Rated Voltage: | 110V/220V 50/60HZ |
| Applicable Pipe Thread: | 1/2-3 inch |
| Rated Input Power: | 750w |
| Switch: | Heavy-duty FOR/OFF/REV and Integral Foot Switch. |
| Spindle Speed: | 26/11 RPM |
| Rear Centering Device: | Cam-action turns with chuck. |
| Die head: | automatic die head 1/2-2 2 1/2:-3 |
| Threading dies: | alloy |
Description:

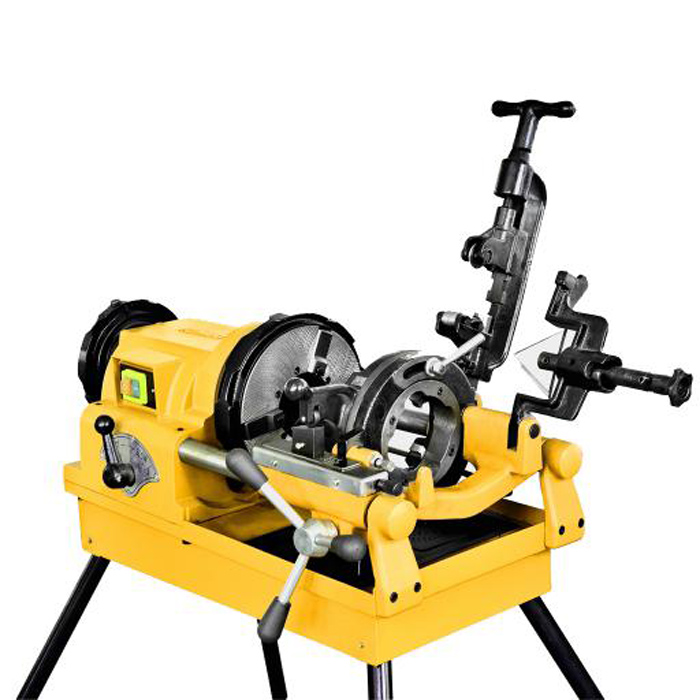

Electric Pipe Threading machine 1/2"-3"
Motor: 750w induction type
Speed: 26/11 RPM
die head (1/2"-2"): automatic type
die head (2 1/2"-3"): automatic type
Chuck: Hammer type with replaceable, rocker-action jaw inserts
Rear centering device: Cam action
Oiling system: through the head, with an integral oil reservoir, self-primming, constant-flow
standard alloy dies
