Name:Portable Handle Ratchet Threader
Model:12R
Die head:1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
thread:BSPT/NPT
Weight:25kg
Automatic:Manual
Condition:New
MOQ:1 set
Packing:Carton

Product Description

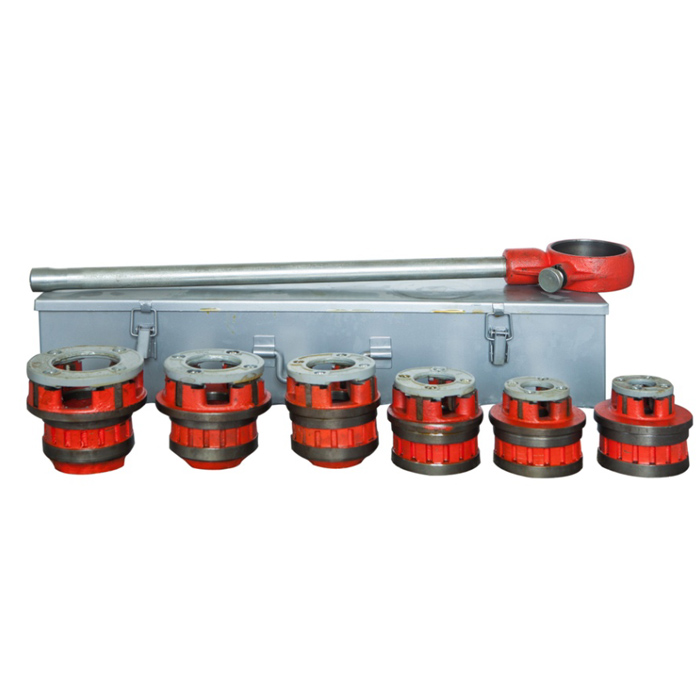

Portable Handle Ratchet Threader Set

Model No.: 12-R



Feature:

1.For manual threading work.

2.Same type dies can also be used on power portable threaders.

3.Efficient and easy stocking.

4.Threader Sets includes Die Heads, Ratchet Assembly, Ratchet Handle.

5. Threading range up to 2" with one ratchet lever,with 6 type die heads.
6. All Threader Sets equip compatible 12-R Dies in Die Head.

 Specifications

1.Die head sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

2.Both BSPT & NPT are available

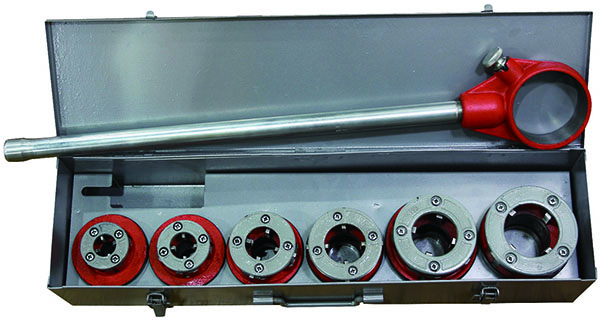

3.Packaging Details:metal carrying case with outer carton


Portable Hand Pipe Threader

  • Precision thread cutting capacity:

  • BSPT right               dia. 1/2"-2”

  • NPT right                 dia. 1/2"-2”

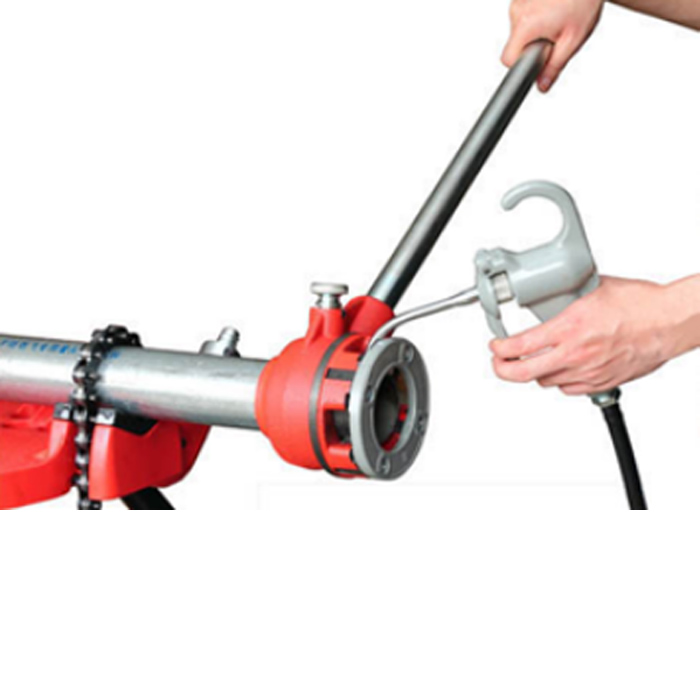

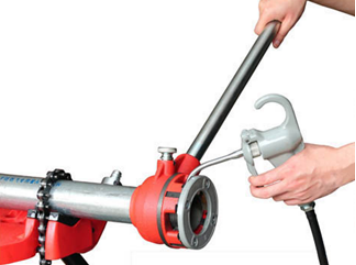

Threader Ratchet Lever

1. Convenient, lockable reversal of ratchet direction

2. Right and handed threads

3. Secure hold with retainer locking,simple insertion and removal of die heads

4. User friendly

5. Slim, compact shape with excellent overall size, angle requirements of 22.5°

6. For easy work in difficult to reach positions

7. Off-set lever

8. Labor saving

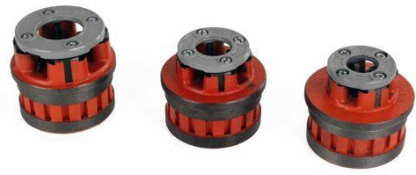

Quick Change Die Heads

1. Positive octagonal universal drive

2. Secure hold

3. Long pipe guide

4. Perfect centering

5. Simple insertion and removal of die heads

6. Easy changing





Precision Dies

1. High-quality tempered steel

2. Extremely long working life

3. Optimized cutting geometry

4. Gentle first cut, chip discharge



Cat No.Model No.DescriptionCapacityWeight

12RComplete set of portable hand pipe threader, BSPTin
½-2 /mm
12-50
25

12RComplete set of portable hand pipe threader, NPTin
½-2 /
mm
12-50
25
